Diffractive Autoencoder for MNIST classification task
This notebook is based on the article “All-optical autoencoder machine learning framework using diffractive processors” [1].
Imports
[1]:
import os
import sys
import random
[2]:
import time
import json
[3]:
# import warnings
# warnings.simplefilter("always") # always show warnings!
[4]:
import numpy as np
[5]:
from collections import Counter
[6]:
import torch
from torch.utils.data import Dataset
[7]:
from torch import nn
[8]:
from torch.nn import functional
[9]:
import torchvision
import torchvision.transforms as transforms
[10]:
from torchvision.transforms import InterpolationMode
[11]:
# our library
from svetlanna import SimulationParameters
from svetlanna.parameters import ConstrainedParameter
[12]:
# our library
from svetlanna import Wavefront
from svetlanna import elements
from svetlanna.detector import Detector, DetectorProcessorClf
[13]:
from svetlanna.transforms import ToWavefront
[14]:
# dataset
from src.wf_datasets import DatasetOfWavefronts
[15]:
from tqdm import tqdm
[16]:
from datetime import datetime
[17]:
import matplotlib.pyplot as plt
import matplotlib.patches as patches
from mpl_toolkits.axes_grid1 import make_axes_locatable
plt.style.use('dark_background')
%matplotlib inline
# %config InlineBackend.figure_format = 'retina'
[18]:
today_date = datetime.today().strftime('%d-%m-%Y_%H-%M') # date for a results folder name
today_date
[18]:
'26-03-2025_23-38'
[19]:
# Define all necessery variables for that notebook
VARIABLES = {
# FILEPATHES
'data_path': './data', # folder which will be created (if not exists) to load/store Weizmann dataset
'results_path': f'models/autoencoder/ae_exp_{today_date}', # filepath to save results!
# GENERAL SETTINGS - SECTION 1 of the notebook
'wavelength': 0.435 * 1e-3, # working wavelength, in [m]
# Comment: Value from the article [1] - 0.435 * 1e-3 # in [m]
'neuron_size': 0.435 * 1e-3, # size of a pixel for DiffractiveLayers, in [m]
# Comment: Value from the article [1] - 64 neurons ~ 27.84 * 1e-3 # in [m]
'mesh_size': (160, 160), # full size of a layer = numerical mesh
# Comment: value from the article [1] - (160, 160)
'use_apertures': False, # if we need to add apertures before each Diffractie layer
# Comment: value from the article [1] - unknown
'aperture_size': (64, 64), # size of each aperture = a detector square for classes zones
# Comment: value from the article [1] - unknown
# DATASET OF SUBSEQUENCES SETTINGS - SECTION 2 of the notebook
'resize': (64, 64), # size to resize pictures to add 0th padding then (up to the mesh size)
'modulation': 'amp', # modulation type to make a wavefront from each picture mask (see 2.3.2.)
# Comment: can be equal to `phase`, `amp` or `both`
# NETWORK - SECTION 3 of the notebook
'max_phase': 2 * torch.pi, # maximal possible phase for each DiffractiveLayer
'free_space_method': 'AS', # propagation method
# Comment: can be 'AS' or 'fresnel'
'distance': 34.8 * 1e-3, # distance between diffractive layers
# Comment: distances between two successive layers were all 34.8mm (80 * wavelength)
# ENCODER
'encoder_use_slm': True, # use SLM (if True) or DiffractiveLayers (if False)
'encoder_num_layers': 5,
'encoder_init_phases': torch.pi,
# value or a list of initial constant phases for DiffractiveLayers OR SLM
# SLM settings - if 'use_slm' == True
# Comment: a size of each SLM is equal to SimulationParameters!
'encoder_slm_shapes': [(160, 160), (160, 160), (80, 80), (80, 80), (40, 40)],
# list of size 'encoder_num_layers'
'encoder_slm_levels': 256,
# value OR a list (len = 'encoder_num_layers') of numbers of levels for each SLM
'encoder_slm_step_funcs': 'linear', # value OR a list of step function names
# Comment: available stp functions names - 'linear'
# PRESERVE PHASE OR NOT?!
'preserve_phase': False, # by default - resets phases after encoding (before decoding)
# DECODER - same params!
'decoder_use_slm': False,
'decoder_num_layers': 5,
'decoder_init_phases': torch.pi,
# SLM settings - if 'use_slm' == True
'decoder_slm_shapes': (160, 160),
'decoder_slm_levels': 256,
'decoder_slm_step_funcs': 'linear',
# NETWORK LEARNING - SECTION 4 of the notebook
# FOR CUSTOM LOSS
'eta_th': 0.04, # value for loss (see 4.1.2.)
'encoding_region_size': (20, 20), # a shape of encoding image
# Comment: value from the article [1] - (8, 8)
'gamma_rec': 1e3, # coeff before MSE between Input and Encoded
'gamma_en': 2e-5,
'gamma_eff': 0.1, # coefficients for a loss function (see 4.1.2.)
# Comment: values from [1] - 5e-5 and 0.1 respectively
# Comment: it is also influence on validation/training loops!!!
'DEVICE': 'cpu', # if `cuda` - we will check if it is available (see first cells of Sec. 4)
'train_batch_size': 128, # batch sizes for training (see 4.1.1.)
'val_batch_size': 128,
# Comment: value from the article [1] - 20 # for both train and test?
'adam_lr': 0.01, # learning rate for Adam optimizer (see 4.1.2.)
# Comment: value from the article [1] - 0.01
'number_of_epochs': 80, # number of epochs to train
# Comment: value from the article [1] - 100-300 ?!
}
[20]:
# functions for SLM step (look documentation of SLM)
SLM_STEPS = {
'linear': lambda x: x,
}
[21]:
RESULTS_FOLDER = VARIABLES['results_path']
if not os.path.exists(RESULTS_FOLDER):
os.makedirs(RESULTS_FOLDER)
[22]:
RESULTS_FOLDER
[22]:
'models/autoencoder/ae_exp_26-03-2025_23-38'
[23]:
# save experiment conditions (VARIABLES dictionary)
with open(f'{RESULTS_FOLDER}/conditions.json', 'w', encoding ='utf8') as json_file:
json.dump(VARIABLES, json_file, ensure_ascii = True)
[ ]:
1. Simulation parameters
Citations from Methods and Materials (Parameter details of diffractive processors) of [1]:
… i.e., \(\lambda = 0.435\) mm for \(f_0 = 0.69\) THz …
The diffractive layer sets of numerical models were all \(69.6\) mm \(\times\) \(69.6\) mm in size (\(160 \times 160\) pixels)
[24]:
working_wavelength = VARIABLES['wavelength'] # [m] - like for MNIST
c_const = 299_792_458 # [m / s]
working_frequency = c_const / working_wavelength # [Hz]
[25]:
print(f'lambda = {working_wavelength * 1e3:.3f} mm')
print(f'frequency = {working_frequency / 1e12:.3f} THz')
lambda = 0.435 mm
frequency = 0.689 THz
[26]:
# neuron size (square)
neuron_size = VARIABLES['neuron_size'] # [m] - like for MNIST
print(f'neuron size = {neuron_size * 1e3:.3f} mm')
neuron size = 0.435 mm
[27]:
APERTURES = VARIABLES['use_apertures'] # add apertures BEFORE each diffractive layer or not
[28]:
LAYER_SIZE = VARIABLES['mesh_size'] # mesh size
DETECTOR_SIZE = VARIABLES['aperture_size']
[29]:
# number of neurons in simulation
x_layer_nodes = LAYER_SIZE[1]
y_layer_nodes = LAYER_SIZE[0]
# Comment: Same size as proposed!
print(f'Layer size (in neurons): {x_layer_nodes} x {y_layer_nodes} = {x_layer_nodes * y_layer_nodes}')
Layer size (in neurons): 160 x 160 = 25600
[30]:
# physical size of each layer
x_layer_size_m = x_layer_nodes * neuron_size # [m]
y_layer_size_m = y_layer_nodes * neuron_size
print(f'Layer size (in mm): {x_layer_size_m * 1e3 :.3f} x {y_layer_size_m * 1e3 :.3f}')
Layer size (in mm): 69.600 x 69.600
[31]:
X_LAYER_SIZE_M = x_layer_size_m
Y_LAYER_SIZE_M = y_layer_size_m
[ ]:
[32]:
# simulation parameters for the rest of the notebook
SIM_PARAMS = SimulationParameters(
axes={
'W': torch.linspace(-x_layer_size_m / 2, x_layer_size_m / 2, x_layer_nodes),
'H': torch.linspace(-y_layer_size_m / 2, y_layer_size_m / 2, y_layer_nodes),
'wavelength': working_wavelength, # only one wavelength!
}
)
[ ]:
2. Dataset preparation
2.1. MNIST Dataset
[33]:
# initialize a directory for a dataset
MNIST_DATA_FOLDER = VARIABLES['data_path'] # folder to store data
[34]:
# TRAIN (images)
mnist_train_ds = torchvision.datasets.MNIST(
root=MNIST_DATA_FOLDER,
train=True, # for train dataset
download=True,
)
[35]:
# TEST (images)
mnist_test_ds = torchvision.datasets.MNIST(
root=MNIST_DATA_FOLDER,
train=False, # for test dataset
download=True,
)
[36]:
print(f'Train data: {len(mnist_train_ds)}')
print(f'Test data : {len(mnist_test_ds)}')
Train data: 60000
Test data : 10000
From [1]:
\(FOV_I\) and \(FOV_{II}\) were both \(27.84\) mm \(\times\) \(27.84\) mm in size (\(64\times64\) pixels)
[37]:
# select modulation type
MODULATION_TYPE = VARIABLES['modulation'] # using ONLY amplitude to encode each picture in a Wavefront!
RESIZE_SHAPE = VARIABLES['resize'] # size to resize pictures to add 0th padding then (up to the mesh size)
[38]:
resize_y = RESIZE_SHAPE[0]
resize_x = RESIZE_SHAPE[1] # shape for transforms.Resize
# paddings along OY
pad_top = int((y_layer_nodes - resize_y) / 2)
pad_bottom = y_layer_nodes - pad_top - resize_y
# paddings along OX
pad_left = int((x_layer_nodes - resize_x) / 2)
pad_right = x_layer_nodes - pad_left - resize_x # params for transforms.Pad
[39]:
# compose all transforms!
image_transform_for_ds = transforms.Compose(
[
transforms.ToTensor(),
transforms.Resize(
size=(resize_y, resize_x),
interpolation=InterpolationMode.NEAREST,
),
transforms.Pad(
padding=(
pad_left, # left padding
pad_top, # top padding
pad_right, # right padding
pad_bottom # bottom padding
),
fill=0,
), # padding to match sizes!
ToWavefront(modulation_type=MODULATION_TYPE) # <- selected modulation type here!!!
]
)
[40]:
# TRAIN dataset of WAVEFRONTS
mnist_wf_train_ds = DatasetOfWavefronts(
init_ds=mnist_train_ds, # dataset of images
transformations=image_transform_for_ds, # image transformation
sim_params=SIM_PARAMS, # simulation parameters
)
[41]:
# TEST dataset of WAVEFRONTS
mnist_wf_test_ds = DatasetOfWavefronts(
init_ds=mnist_test_ds, # dataset of images
transformations=image_transform_for_ds, # image transformation
sim_params=SIM_PARAMS, # simulation parameters
)
[42]:
print(f'Train data: {len(mnist_train_ds)}')
print(f'Test data : {len(mnist_test_ds)}')
Train data: 60000
Test data : 10000
[ ]:
3. Autoencoder
distances between two successive layers, \(d_l\), were all \(34.8\) mm (\(80\lambda\))
model consists of five equally spaced phase-only modulation diffractive layers (\(N=5\))
[43]:
if 'preserve_phase' not in VARIABLES.keys():
PRESERVE_PHASE = False
else:
PRESERVE_PHASE = VARIABLES['preserve_phase']
[44]:
NUM_ENCODER_LAYERS = VARIABLES['encoder_num_layers'] # number of diffractive layers
NUM_DECODER_LAYERS = VARIABLES['decoder_num_layers'] # number of diffractive layers
ENCODER_USE_SLM = VARIABLES['encoder_use_slm'] # if we use SLM or DiffractiveLayer as a main element for encoder/decoder
DECODER_USE_SLM = VARIABLES['decoder_use_slm']
MAX_PHASE = VARIABLES['max_phase']
FS_METHOD = VARIABLES['free_space_method']
FS_DISTANCE = VARIABLES['distance'] # [m] - distance between difractive layers
[45]:
if isinstance(VARIABLES['encoder_init_phases'], list):
ENCODER_INIT_PHASES = VARIABLES['encoder_init_phases']
else:
ENCODER_INIT_PHASES = [VARIABLES['encoder_init_phases'] for _ in range(NUM_ENCODER_LAYERS)]
if isinstance(VARIABLES['decoder_init_phases'], list):
DECODER_INIT_PHASES = VARIABLES['decoder_init_phases']
else:
DECODER_INIT_PHASES = [VARIABLES['decoder_init_phases'] for _ in range(NUM_DECODER_LAYERS)]
assert len(ENCODER_INIT_PHASES) == NUM_ENCODER_LAYERS
assert len(DECODER_INIT_PHASES) == NUM_DECODER_LAYERS
SLM settings if needed (for encoder/decoder)
[46]:
if ENCODER_USE_SLM:
ENCODER_SLM_VARIABLES = {}
for key in ['encoder_slm_shapes', 'encoder_slm_levels', 'encoder_slm_step_funcs']:
if key != 'encoder_slm_step_funcs':
if isinstance(VARIABLES[key], list):
ENCODER_SLM_VARIABLES[key] = VARIABLES[key]
else: # all SLM's have the same parameter
ENCODER_SLM_VARIABLES[key] = [VARIABLES[key] for _ in range(NUM_ENCODER_LAYERS)]
else: # for step functions!
if isinstance(VARIABLES[key], list):
ENCODER_SLM_VARIABLES[key] = [SLM_STEPS[name] for name in VARIABLES[key]]
else: # all SLM's have the same parameter
ENCODER_SLM_VARIABLES[key] = [SLM_STEPS[VARIABLES[key]] for _ in range(NUM_ENCODER_LAYERS)]
assert len(ENCODER_SLM_VARIABLES[key]) == NUM_ENCODER_LAYERS
[47]:
if DECODER_USE_SLM:
DECODER_SLM_VARIABLES = {}
for key in ['decoder_slm_shapes', 'decoder_slm_levels', 'decoder_slm_step_funcs']:
if key != 'decoder_slm_step_funcs':
if isinstance(VARIABLES[key], list):
DECODER_SLM_VARIABLES[key] = VARIABLES[key]
else: # all SLM's have the same parameter
DECODER_SLM_VARIABLES[key] = [VARIABLES[key] for _ in range(NUM_DECODER_LAYERS)]
else: # for step functions!
if isinstance(VARIABLES[key], list):
DECODER_SLM_VARIABLES[key] = [SLM_STEPS[name] for name in VARIABLES[key]]
else: # all SLM's have the same parameter
DECODER_SLM_VARIABLES[key] = [SLM_STEPS[VARIABLES[key]] for _ in range(NUM_DECODER_LAYERS)]
assert len(DECODER_SLM_VARIABLES[key]) == NUM_DECODER_LAYERS
3.1. Architecture
3.1.1. Functions to get new elements
[48]:
# functions that return single elements for further architecture
def get_free_space(
freespace_sim_params,
freespace_distance, # in [m]!
freespace_method='AS',
):
"""
Returns FreeSpace layer with a bounded distance parameter.
"""
return elements.FreeSpace(
simulation_parameters=freespace_sim_params,
distance=freespace_distance, # distance is not learnable!
method=freespace_method
)
def get_const_phase_layer(
sim_params: SimulationParameters,
value, max_phase=2 * torch.pi
):
"""
Returns DiffractiveLayer with a constant phase mask.
"""
x_nodes, y_nodes = sim_params.axes_size(axs=('W', 'H'))
const_mask = torch.ones(size=(y_nodes, x_nodes)) * value
return elements.DiffractiveLayer(
simulation_parameters=sim_params,
mask=ConstrainedParameter(
const_mask,
min_value=0,
max_value=max_phase
), # HERE WE ARE USING CONSTRAINED PARAMETER!
) # ATTENTION TO DOCUMENTATION!
# CHANGE ACCORDING TO THE DOCUMENTATION OF SLM!
def get_const_slm_layer(
sim_params: SimulationParameters,
mask_shape,
phase_value,
num_levels,
step_func,
height_m=Y_LAYER_SIZE_M,
width_m=X_LAYER_SIZE_M,
max_phase=2 * torch.pi
):
"""
Returns SpatialLightModulator with a constant phase mask.
"""
y_nodes, x_nodes = mask_shape
const_mask = torch.ones(size=(y_nodes, x_nodes)) * phase_value
return elements.SpatialLightModulator(
simulation_parameters=sim_params,
mask=ConstrainedParameter(
const_mask,
min_value=0,
max_value=max_phase
), # HERE WE ARE USING CONSTRAINED PARAMETER!
height=height_m,
width=width_m,
# location=(0., 0.), # by default
number_of_levels=num_levels,
step_function=step_func,
# mode='nearest', # by default it is 'nearest'
) # ATTENTION TO DOCUMENTATION!
Function to get a list of elements to reproduce an architecture:
[49]:
def get_elements_list(
num_layers,
simulation_parameters,
freespace_distance,
freespace_method,
apertures=False,
aperture_size=(100, 100),
mode='encoder'
):
"""
Composes a list of elements for an encoder (with no Detector).
...
Parameters
----------
num_layers : int
Number of layers in the system.
simulation_parameters : SimulationParameters()
A simulation parameters for a task.
freespace_distance : float,
A distance between phase layers in [m].
freespace_method : str
Propagation method for free spaces in a setup.
apertures : bool
If True, than before each DiffractiveLayer (and detector) we add a square aperture.
Comment: there are strickt square apertures!
aperture_size : tuple
A size of square apertures.
mode : str
Takes values: 'encoder' or 'decoder'.
Returns
-------
elements_list : list(Element)
List of Elements for an encoder/decoder.
"""
elements_list = [] # list of elements
if mode == 'encoder':
use_slm = ENCODER_USE_SLM
init_phases = ENCODER_INIT_PHASES
if use_slm:
slm_masks_shape = ENCODER_SLM_VARIABLES['encoder_slm_shapes']
slm_levels = ENCODER_SLM_VARIABLES['encoder_slm_levels']
slm_funcs = ENCODER_SLM_VARIABLES['encoder_slm_step_funcs']
if mode == 'decoder':
use_slm = DECODER_USE_SLM
init_phases = DECODER_INIT_PHASES
if use_slm:
slm_masks_shape = DECODER_SLM_VARIABLES['decoder_slm_shapes']
slm_levels = DECODER_SLM_VARIABLES['decoder_slm_levels']
slm_funcs = DECODER_SLM_VARIABLES['decoder_slm_step_funcs']
if apertures: # equal masks for all apertures (select a part in the middle)
aperture_mask = torch.ones(size=aperture_size)
y_nodes, x_nodes = simulation_parameters.axes_size(axs=('H', 'W'))
y_mask, x_mask = aperture_mask.size()
pad_top = int((y_nodes - y_mask) / 2)
pad_bottom = y_nodes - pad_top - y_mask
pad_left = int((x_nodes - x_mask) / 2)
pad_right = x_nodes - pad_left - x_mask # params for transforms.Pad
# padding transform to match aperture size with simulation parameters
aperture_mask = functional.pad(
input=aperture_mask,
pad=(pad_left, pad_right, pad_top, pad_bottom),
mode='constant',
value=0
)
# first FreeSpace layer before first DiffractiveLayer
elements_list.append(
get_free_space(
simulation_parameters, # simulation parameters for the notebook
freespace_distance, # in [m]
freespace_method=freespace_method,
)
)
# compose the architecture
for ind_layer in range(num_layers):
# add strickt square Aperture
if apertures:
elements_list.append(
elements.Aperture(
simulation_parameters=simulation_parameters,
mask=aperture_mask
)
)
# ------------------------------------------------------------PHASE LAYER
if use_slm: # add a phase layer (SLM or DiffractiveLayer)
# add SLM (learnable phase mask)
elements_list.append(
get_const_slm_layer(
simulation_parameters,
mask_shape=slm_masks_shape[ind_layer],
phase_value=init_phases[ind_layer],
num_levels=slm_levels[ind_layer],
step_func=slm_funcs[ind_layer],
max_phase=MAX_PHASE
)
)
else:
# add DiffractiveLayer (learnable phase mask)
elements_list.append(
get_const_phase_layer(
simulation_parameters,
value=init_phases[ind_layer],
max_phase=MAX_PHASE
)
)
# -----------------------------------------------------------------------
# add FreeSpace
elements_list.append(
get_free_space(
simulation_parameters, # simulation parameters for the notebook
freespace_distance, # in [m]
freespace_method=freespace_method,
)
)
return elements_list
[ ]:
3.1.3. Autoencoder (bidirectional encoder-decoder) class
[50]:
class AutoencoderSymmetrical(nn.Module):
"""
An autoencoder:
.encode() - forward propagation through encoder elements
.decode() - forward propagation through decoder elements
"""
def __init__(
self,
sim_params: SimulationParameters,
encoder_num_layers: int,
decoder_num_layers: int,
fs_distance: float,
fs_method: str = 'AS',
encoder_elements_list: list = None,
decoder_elements_list: list = None,
device: str | torch.device = torch.get_default_device(),
):
"""
Parameters
----------
sim_params : SimulationParameters
Simulation parameters for the task.
encoder_num_layers, decoder_num_layers : int
Number of layers in encoder/decoder.
fs_distance : float,
A distance between phase layers in [m].
fs_method : str
Propagation method for free spaces in a setup.
elements_list : list
List of elements to compose an autoencoder.
"""
super().__init__()
self.sim_params = sim_params
self.h, self.w = self.sim_params.axes_size(
axs=('H', 'W')
) # height and width for a wavefronts
self.__device = device
self.fs_method = fs_method
# ENCODER
if encoder_elements_list is None:
encoder_elements_list = get_elements_list(
encoder_num_layers,
self.sim_params,
fs_distance,
fs_method,
apertures=VARIABLES['use_apertures'],
aperture_size=VARIABLES['aperture_size'],
mode='encoder'
) # no Detector here!
# self.encoder_elements = encoder_elements_list
self.encoder = nn.Sequential(*encoder_elements_list).to(self.__device)
# DECODER
if decoder_elements_list is None:
decoder_elements_list = get_elements_list(
decoder_num_layers,
self.sim_params,
fs_distance,
fs_method,
apertures=VARIABLES['use_apertures'],
aperture_size=VARIABLES['aperture_size'],
mode='decoder', # DECODER is a mirror image of ENCODER!
) # no Detector here!
# self.decoder_elements = decoder_elements_list
self.decoder = nn.Sequential(*decoder_elements_list).to(self.__device)
def encode(self, wavefront_in):
"""
Forward propagation through the autoencoder - encode an image wavefront (input).
Returns
-------
wavefront_encoded : Wavefront
An encoded input wavefront.
"""
return self.encoder(wavefront_in)
def decode(self, wavefront_encoded):
"""
Backward propagation through the autoencoder - decode an wncoded image.
Returns
-------
wavefront_decoded : Wavefront
A decoded wavefront.
"""
return self.decoder(wavefront_encoded)
def stepwise_propagation(self, input_wavefront: Wavefront, mode: str='encode'):
"""
Function that consistently applies forward method of each element of ENCODER/DECODER
to an input wavefront.
Parameters
----------
input_wavefront : torch.Tensor
A wavefront that enters the optical network.
mode : str
Specify a mode 'encode' or 'decode'.
Returns
-------
str
A string that represents a scheme of a propagation through a setup.
list(torch.Tensor)
A list of an input wavefront evolution
during a propagation through a setup.
"""
this_wavefront = input_wavefront
# list of wavefronts while propagation of an initial wavefront through the system
steps_wavefront = [this_wavefront] # input wavefront is a zeroth step
optical_scheme = '' # string that represents a linear optical setup (schematic)
if mode == 'encode':
net = self.encoder
if mode == 'decode':
net = self.decoder
net.eval()
for ind_element, element in enumerate(net):
# for visualization in a console
element_name = type(element).__name__
optical_scheme += f'-({ind_element})-> [{ind_element + 1}. {element_name}] '
if ind_element == len(net) - 1:
optical_scheme += f'-({ind_element + 1})->'
# element forward
with torch.no_grad():
this_wavefront = element.forward(this_wavefront)
steps_wavefront.append(this_wavefront) # add a wavefront to list of steps
return optical_scheme, steps_wavefront
def forward(self, wavefront_in):
"""
Parameters
----------
wavefront_in: Wavefront('bs', 'H', 'W')
Returns
-------
amplitudes_encoded, amplitudes_decoded : torch.Tensor
Amplitudes of encoded and decoded wavefronts.
"""
if len(wavefront_in.shape) > 2: # if a batch is an input
batch_flag = True
bs = wavefront_in.shape[0]
else:
batch_flag = False
# encode
wavefront_encoded = self.encode(wavefront_in)
# decode from intencity!
if PRESERVE_PHASE:
wavefront_decoded = self.decode(wavefront_encoded)
else:
wavefront_encoded_no_phase = wavefront_encoded.abs() + 0j
wavefront_decoded = self.decode(wavefront_encoded_no_phase)
# results to calculate loss
amplitudes_encoded = wavefront_encoded.abs()
amplitudes_decoded = wavefront_decoded.abs()
return amplitudes_encoded, amplitudes_decoded
[ ]:
3.2. An untrained autoencoder
[51]:
def get_autoencoder():
return AutoencoderSymmetrical(
sim_params=SIM_PARAMS,
encoder_num_layers=NUM_ENCODER_LAYERS,
decoder_num_layers=NUM_DECODER_LAYERS,
fs_distance=FS_DISTANCE,
fs_method=FS_METHOD,
)
[ ]:
4. Training of the network
[52]:
DEVICE = VARIABLES['DEVICE'] # 'mps' is not support a CrossEntropyLoss
[53]:
if DEVICE == 'cuda':
DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
DEVICE
[53]:
'cpu'
4.1. Prepare some stuff for training
Citation from [1]:
During each training iteration, a mini-batch composed of \(128\) randomly selected images was input to the model.
[54]:
train_bs = VARIABLES['train_batch_size'] # a batch size for training set
val_bs = VARIABLES['val_batch_size']
[55]:
train_wf_loader = torch.utils.data.DataLoader(
mnist_wf_train_ds,
batch_size=train_bs,
shuffle=True,
drop_last=False,
)
test_wf_loader = torch.utils.data.DataLoader(
mnist_wf_test_ds,
batch_size=val_bs,
shuffle=True,
drop_last=False,
)
[ ]:
Citations from methods of [1]:
For all three architectures, the learning rate was set to \(0.01\), with a training batch size of … \(20\) for the D-RNN.
We adopt a stochastic gradient descent algorithm, that is, the adaptive moment estimation (Adam) optimizer …
[56]:
LR = VARIABLES['adam_lr']
[57]:
def get_adam_optimizer(net):
return torch.optim.Adam(
params=net.parameters(), # NETWORK PARAMETERS!
lr=LR
)
From [1]:
\[\mathcal{L}_\text{OAE} = \mathcal{L}_\text{Rec}+\gamma_{En} \mathcal{L}_{En} +\gamma_{eff}\mathcal{L}_{eff}\]Here, \(\mathcal{L}_\text{Rec}\) represents the reconstruction error between input images and corresponding decoded images, and is defined as:
\[\mathcal{L}_\text{Rec} = \mathcal{L}_\text{MSE} \left( I(x,y), O_{De}(x,y) \right) =E \left[ \left| \sigma_1 I(x,y) - \sigma_2 O_{De}(x,y) \right|^2 \right],\]\[\sigma_1=\frac{1}{\sum\limits_{(x,y)} I(x,y)},\]\[\sigma_2 = \sigma_1 \frac{\sum\limits_{(x,y)} I(x,y) O_{De}(x,y) }{\sum\limits_{(x,y)} |O_{De}(x,y)|^2 },\]where \(E[\cdot]\) is the average operator, \(I(x,y)\) stands for input image and \(O_{De}(x,y)\) stands for decoded image. \(\sigma_1\) and \(\sigma_2\) are parameters that eliminate the error due to diffractive energy loss.
\(\mathcal{L}_{En}\) is a regularization term designed to maximize the concentration of energy in the target encoding region, which can be expressed as:
\[\mathcal{L}_{En} = -\ln\left( \frac{\sum\limits_{(x,y)} |M(x,y)O_{En}(x,y)|^2 }{\sum\limits_{(x,y)} |O_{En}(x,y)|^2 } \right),\]\[\begin{split}M(x,y)= \begin{cases} 1,\;(x,y) \in \text{encoding region} \\ 0,\; \text{otherwise} \end{cases}\end{split}\]where \(O_{En}(x,y)\) represents the encoder output. \(M(x,y)\), a region mask function that defines the shape of encoding patterns, guides the output to align with the target shape by providing a prior shape distribution, similar to the prior probability distribution in the electronic VAE model.
\(\mathcal{L}_{Eff}\) is another regulation term that controls the bidirectional diffraction efficiency. For SOAE and its extended models, we simply used the reconstruction efficiency to constrain the model weights. The equation can be expressed as follows:
\[\begin{split}\mathcal{L}_{Eff} = \begin{cases} -\ln \left( \frac{\eta_R}{\eta_{Th}} \right), \; \eta_R < \eta_{Th} \\ 0,\; \eta_R \geq \eta_{Th} \end{cases}\end{split}\]\[\eta_R=\frac{ \sum\limits_{(x,y)} |O_{De}(x,y)|^2 }{ \sum\limits_{(x,y)} |I(x,y)|^2 }\]
… with \(\eta_{Th}\) in equation … being \(4\%\)
[58]:
ETA_TH = VARIABLES['eta_th']
The encoding region of tiny SOAE and MOAE models are both a square with a side length of \(8\), resulting in a compression ratio of \(16\).
[59]:
REGION_MASK_SIZE = VARIABLES['encoding_region_size']
[60]:
REGION_MASK = torch.ones(size=REGION_MASK_SIZE) # M(x,y)
y_nodes, x_nodes = SIM_PARAMS.axes_size(axs=('H', 'W'))
y_mask, x_mask = REGION_MASK_SIZE
pad_top = int((y_nodes - y_mask) / 2)
pad_bottom = y_nodes - pad_top - y_mask
pad_left = int((x_nodes - x_mask) / 2)
pad_right = x_nodes - pad_left - x_mask # params for transforms.Pad
# padding transform to match aperture size with simulation parameters
REGION_MASK = functional.pad(
input=REGION_MASK,
pad=(pad_left, pad_right, pad_top, pad_bottom),
mode='constant',
value=0
)
print(f'M(x,y) shape: ({REGION_MASK.shape[0]}, {REGION_MASK.shape[1]})')
print(f'Number of nonzero (ones) elements: {int(REGION_MASK.sum().item())}')
M(x,y) shape: (160, 160)
Number of nonzero (ones) elements: 400
… \(\gamma_{En}\) and \(\gamma_{Eff}\) in equation (4) for training SOAE model and its extensions, as well as DSOAE model were respectively set to \(5\times 10^{-5}\) and \(0.1\) …
[61]:
GAMMA_EN = VARIABLES['gamma_en']
GAMMA_EFF = VARIABLES['gamma_eff']
[62]:
if 'gamma_rec' in VARIABLES.keys():
GAMMA_REC = VARIABLES['gamma_rec'] # to make losses of the same order
else:
GAMMA_REC = 1.0
[63]:
def CustomLossFunc(input_image, encoded_image_amp, decoded_image_amp):
"""
Calculates an error function as was used in the article [1].
Parameters:
-----------
input_image : Wavefront
Input wavefront constructed from an image (or a batch of images!).
encoded_image_amp : Wavefront (~torch.Tensor)
A result of encoding (forward propagation through autoencoder) of an input image - amplitudes!
decoded_image_amp : Wavefront (~ torch.Tensor)
A result of decoding (backward propagation through autoencoder) of an encoded image - amplitudes!
Comment: first dimension is responsible for a batch size!
"""
if len(input_image.shape) > 2: # if a batch is an input
batch_flag = True
bs = input_image.shape[0]
else:
batch_flag = False
h, w = SIM_PARAMS.axes_size(axs=('H', 'W'))
number_of_layer_neurons = h * w
# TODO: is the error calculates by amplitudes or by intensities?
input_image_amp = input_image.abs()
# the reconstruction error - L_Rec
sigma_1 = 1 / (input_image_amp.sum(dim=(-2, -1)))
sigma_2 = sigma_1 * (
(input_image_amp * decoded_image_amp).sum(dim=(-2, -1)) /
(decoded_image_amp ** 2).sum(dim=(-2, -1))
)
if batch_flag:
sigma_1 = sigma_1.view(-1, 1, 1)
sigma_2 = sigma_2.view(-1, 1, 1)
l_rec = (
(
(
sigma_1 * input_image_amp -
sigma_2 * decoded_image_amp
) ** 2
).sum(dim=(-2, -1)) / number_of_layer_neurons # DO WE NEED THIS DIVISION?!
)
# regularization term - L_En
l_en = -torch.log(
((REGION_MASK * encoded_image_amp) ** 2).sum(dim=(-2, -1)) /
(encoded_image_amp ** 2).sum(dim=(-2, -1))
)
# another regulation term - L_Eff
eta_r = (
(decoded_image_amp ** 2).sum(dim=(-2, -1)) /
(input_image_amp ** 2).sum(dim=(-2, -1))
)
if batch_flag:
l_eff = torch.where(eta_r < ETA_TH, -torch.log(eta_r / ETA_TH), 0.0)
else:
l_eff = -torch.log(eta_r / ETA_TH) if eta_r < ETA_TH else 0.0
# complete loss
loss = GAMMA_REC * l_rec + GAMMA_EN * l_en + GAMMA_EFF * l_eff
return (l_rec.mean(), l_en.mean(), l_eff.mean()), loss.mean()
[ ]:
[64]:
loss_func = CustomLossFunc
loss_func_name = 'custom loss'
[ ]:
[65]:
def autoencoder_train(
autoencoder, wavefronts_dataloader,
loss_func, optimizer,
device='cpu', show_process=False
):
"""
Function to train `AutoencoderBidirectional`
...
Parameters
----------
autoencoder : torch.nn.Module
Autoencoder which is an encoder in one direction and a decoder in another.
wavefronts_dataloader : torch.utils.data.DataLoader
A loader (by batches) for the train dataset of wavefronts.
loss_func :
Loss function for such an autoencoder.
optimizer: torch.optim
Optimizer...
device : str
Device to computate on...
show_process : bool
Flag to show (or not) a progress bar.
Returns
-------
batches_loss_parts : list[list]
Parts of the custom loss!
batches_losses : list[float]
Losses for each batch in an epoch.
"""
autoencoder.train() # activate 'train' mode of a model
batches_losses = [] # to store loss for each batch
batches_loss_parts = [] # to store accuracy for each batch
correct_preds = 0
size = 0
ind_batch = 1
for batch_wavefronts, batch_labels in tqdm(
wavefronts_dataloader,
total=len(wavefronts_dataloader),
desc='train', position=0,
leave=True, disable=not show_process
): # go by batches
# batch_wavefronts - input wavefronts, batch_labels - labels
batch_size = batch_wavefronts.size()[0]
batch_wavefronts = batch_wavefronts.to(device)
# batch_labels = batch_labels.to(device)
optimizer.zero_grad()
# forward of an autoencoder
encoded_image_amp, decoded_image_amp = autoencoder(batch_wavefronts)
loss_parts, loss = loss_func(batch_wavefronts, encoded_image_amp, decoded_image_amp)
loss.backward()
optimizer.step()
# accumulate losses and accuracies for batches
batches_losses.append(loss.item())
batches_loss_parts.append([part.item() for part in loss_parts])
return batches_loss_parts, batches_losses
[66]:
def autoencoder_validate(
autoencoder, wavefronts_dataloader,
loss_func,
device='cpu', show_process=False
):
"""
Function to validate `AutoencoderBidirectional`
...
Parameters
----------
autoencoder : torch.nn.Module
Autoencoder which is an encoder in one direction and a decoder in another.
wavefronts_dataloader : torch.utils.data.DataLoader
A loader (by batches) for the train dataset of wavefronts.
loss_func :
Loss function for such an autoencoder.
device : str
Device to computate on...
show_process : bool
Flag to show (or not) a progress bar.
Returns
-------
batches_loss_parts : list[list]
Parts of the custom loss!
batches_losses : list[float]
Losses for each batch in an epoch.
"""
autoencoder.eval() # activate 'eval' mode of a model
batches_losses = [] # to store loss for each batch
batches_loss_parts = [] # to store accuracy for each batch
correct_preds = 0
size = 0
for batch_wavefronts, batch_labels in tqdm(
wavefronts_dataloader,
total=len(wavefronts_dataloader),
desc='validation', position=0,
leave=True, disable=not show_process
): # go by batches
# batch_wavefronts - input wavefronts, batch_labels - labels
batch_size = batch_wavefronts.size()[0]
batch_wavefronts = batch_wavefronts.to(device)
# batch_labels = batch_labels.to(device)
with torch.no_grad():
encoded_image_amp, decoded_image_amp = autoencoder(batch_wavefronts)
loss_parts, loss = loss_func(batch_wavefronts, encoded_image_amp, decoded_image_amp)
# accumulate losses and accuracies for batches
batches_losses.append(loss.item())
batches_loss_parts.append([part.item() for part in loss_parts])
return batches_loss_parts, batches_losses
4.2. Training of the optical network
4.2.1. Before training
[67]:
# Comment: not tested for `cuda`!
SIM_PARAMS = SIM_PARAMS.to(DEVICE)
autoencoder_no_train = get_autoencoder().to(DEVICE)
/Users/giyuu/science-phd/git-projects/SVETlANNa/svetlanna/elements/free_space.py:152: UserWarning: Aliasing problems may occur in the AS method. Consider reducing the distance or increasing the Nx*dx product.
warn(
/Users/giyuu/science-phd/git-projects/SVETlANNa/svetlanna/elements/free_space.py:158: UserWarning: Aliasing problems may occur in the AS method. Consider reducing the distance or increasing the Ny*dy product.
warn(
[68]:
loss_func_power = 5 # FOR OUTPUT!
[69]:
test_loss_parts_0, test_losses_0 = autoencoder_validate(
autoencoder_no_train, # optical recurrent network composed in 3.
test_wf_loader, # dataloader of training set
loss_func,
device=DEVICE,
show_process=True,
) # evaluate the model
print(
'Results before training on TEST set:\n' +
f'\t{loss_func_name} : {np.mean(test_losses_0) * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}'
)
# LOSS PARTS
l_rec_0, l_en_0, l_eff_0 = np.mean(test_loss_parts_0, axis=0)
print(f'\t\tg_rec * L_rec = {GAMMA_REC * l_rec_0 * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_en * L_en = {GAMMA_EN * l_en_0 * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_eff * L_eff = {GAMMA_EFF * l_eff_0 * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
validation: 100%|████████████████████████████████████████████| 79/79 [00:34<00:00, 2.28it/s]
Results before training on TEST set:
custom loss : 8.371190 * 1e-5
g_rec * L_rec = 5.337000 * 1e-5
g_en * L_en = 3.034190 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
[ ]:
4.2.2. Training
[70]:
n_epochs = VARIABLES['number_of_epochs']
print_each = 5 # print each n'th epoch info
loss_func_power = 5 # for good output loss multiplies by 10 ** (n)
[ ]:
[71]:
# Recreate a system to restart training!
# Comment: not tested for `cuda`!
SIM_PARAMS = SIM_PARAMS.to(DEVICE)
autoencoder_to_train = get_autoencoder().to(DEVICE)
# Linc optimizer to a recreated net!
optimizer_train = get_adam_optimizer(autoencoder_to_train)
[72]:
scheduler = None # sheduler for a lr tuning during training
[ ]:
[73]:
losses_parts_names = ['l_rec', 'l_en', 'l_eff'] # ORDER IS SPECIFIED IN CustomFunc return!
losses_coeffs = {'l_rec': GAMMA_REC, 'l_en': GAMMA_EN, 'l_eff': GAMMA_EFF}
[ ]:
[74]:
train_epochs_losses = []
train_epochs_loss_parts = {key: [] for key in losses_parts_names}
val_epochs_losses = [] # to store losses of each epoch
val_epochs_loss_parts = {key: [] for key in losses_parts_names}
torch.manual_seed(98) # for reproducability?
for epoch in range(n_epochs):
if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1):
print(f'Epoch #{epoch + 1}: ', end='')
show_progress = True
else:
show_progress = False
# TRAIN
start_train_time = time.time() # start time of the epoch (train)
train_loss_parts, train_losses = autoencoder_train(
autoencoder_to_train, # optical network composed in 3.
train_wf_loader, # dataloader of training set
loss_func,
optimizer_train,
device=DEVICE,
show_process=show_progress,
) # train the model
mean_train_loss = np.mean(train_losses)
train_l_rec, train_l_en, train_l_eff = np.mean(train_loss_parts, axis=0)
if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1): # train info
print('Training results')
print(f'\t{loss_func_name}: {mean_train_loss * 10 ** (loss_func_power):.6f} * 1e-{loss_func_power}')
print(f'\t\tg_rec * L_rec = {GAMMA_REC * train_l_rec * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_en * L_en = {GAMMA_EN * train_l_en * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_eff * L_eff = {GAMMA_EFF * train_l_eff * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t------------ {time.time() - start_train_time:.2f} s')
# VALIDATION
start_val_time = time.time() # start time of the epoch (validation)
val_loss_parts, val_losses = autoencoder_validate(
autoencoder_to_train, # optical network composed in 3.
test_wf_loader, # dataloader of validation set
loss_func,
device=DEVICE,
show_process=show_progress,
) # evaluate the model
mean_val_loss = np.mean(val_losses)
val_l_rec, val_l_en, val_l_eff = np.mean(val_loss_parts, axis=0)
if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1): # validation info
print('Validation results')
print(f'\t{loss_func_name} * 1e{loss_func_power}: {mean_val_loss * 10 ** (loss_func_power):.6f}')
print(f'\t\tg_rec * L_rec = {GAMMA_REC * val_l_rec * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_en * L_en = {GAMMA_EN * val_l_en * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t\tg_eff * L_eff = {GAMMA_EFF * val_l_eff * 10 ** loss_func_power:.6f} * 1e-{loss_func_power}')
print(f'\t------------ {time.time() - start_val_time:.2f} s')
if scheduler:
scheduler.step(mean_val_loss)
# save losses
train_epochs_losses.append(mean_train_loss)
for key, val in zip(losses_parts_names, [train_l_rec, train_l_en, train_l_eff]):
train_epochs_loss_parts[key].append(val)
val_epochs_losses.append(mean_val_loss)
for key, val in zip(losses_parts_names, [val_l_rec, val_l_en, val_l_eff]):
val_epochs_loss_parts[key].append(val)
Epoch #1:
train: 100%|███████████████████████████████████████████████| 469/469 [09:13<00:00, 1.18s/it]
Training results
custom loss: 5.676445 * 1e-5
g_rec * L_rec = 4.524684 * 1e-5
g_en * L_en = 1.151761 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 553.78 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:44<00:00, 1.77it/s]
Validation results
custom loss * 1e5: 4.826706
g_rec * L_rec = 3.981955 * 1e-5
g_en * L_en = 0.844751 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 44.75 s
Epoch #5:
train: 100%|███████████████████████████████████████████████| 469/469 [09:22<00:00, 1.20s/it]
Training results
custom loss: 4.030463 * 1e-5
g_rec * L_rec = 3.315819 * 1e-5
g_en * L_en = 0.714645 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 562.91 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:43<00:00, 1.82it/s]
Validation results
custom loss * 1e5: 3.856242
g_rec * L_rec = 3.168086 * 1e-5
g_en * L_en = 0.688156 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 43.35 s
Epoch #10:
train: 100%|███████████████████████████████████████████████| 469/469 [09:41<00:00, 1.24s/it]
Training results
custom loss: 3.756154 * 1e-5
g_rec * L_rec = 3.074222 * 1e-5
g_en * L_en = 0.681933 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 582.00 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:45<00:00, 1.75it/s]
Validation results
custom loss * 1e5: 3.625069
g_rec * L_rec = 2.961636 * 1e-5
g_en * L_en = 0.663434 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 45.20 s
Epoch #15:
train: 100%|███████████████████████████████████████████████| 469/469 [08:50<00:00, 1.13s/it]
Training results
custom loss: 3.652713 * 1e-5
g_rec * L_rec = 2.982698 * 1e-5
g_en * L_en = 0.670015 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 530.13 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:42<00:00, 1.87it/s]
Validation results
custom loss * 1e5: 3.530050
g_rec * L_rec = 2.876574 * 1e-5
g_en * L_en = 0.653476 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 42.32 s
Epoch #20:
train: 100%|███████████████████████████████████████████████| 469/469 [08:35<00:00, 1.10s/it]
Training results
custom loss: 3.593646 * 1e-5
g_rec * L_rec = 2.930112 * 1e-5
g_en * L_en = 0.663534 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 515.93 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:35<00:00, 2.25it/s]
Validation results
custom loss * 1e5: 3.472647
g_rec * L_rec = 2.827161 * 1e-5
g_en * L_en = 0.645485 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 35.11 s
Epoch #25:
train: 100%|███████████████████████████████████████████████| 469/469 [07:48<00:00, 1.00it/s]
Training results
custom loss: 3.554895 * 1e-5
g_rec * L_rec = 2.895163 * 1e-5
g_en * L_en = 0.659732 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 468.38 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.441596
g_rec * L_rec = 2.797544 * 1e-5
g_en * L_en = 0.644052 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.56 s
Epoch #30:
train: 100%|███████████████████████████████████████████████| 469/469 [07:47<00:00, 1.00it/s]
Training results
custom loss: 3.527783 * 1e-5
g_rec * L_rec = 2.870117 * 1e-5
g_en * L_en = 0.657666 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 467.56 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.414059
g_rec * L_rec = 2.773360 * 1e-5
g_en * L_en = 0.640698 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.55 s
Epoch #35:
train: 100%|███████████████████████████████████████████████| 469/469 [07:46<00:00, 1.01it/s]
Training results
custom loss: 3.506301 * 1e-5
g_rec * L_rec = 2.850291 * 1e-5
g_en * L_en = 0.656011 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 466.44 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.17it/s]
Validation results
custom loss * 1e5: 3.388355
g_rec * L_rec = 2.749171 * 1e-5
g_en * L_en = 0.639184 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.43 s
Epoch #40:
train: 100%|███████████████████████████████████████████████| 469/469 [07:47<00:00, 1.00it/s]
Training results
custom loss: 3.489515 * 1e-5
g_rec * L_rec = 2.834854 * 1e-5
g_en * L_en = 0.654661 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 467.65 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.379840
g_rec * L_rec = 2.739617 * 1e-5
g_en * L_en = 0.640223 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.57 s
Epoch #45:
train: 100%|███████████████████████████████████████████████| 469/469 [07:46<00:00, 1.00it/s]
Training results
custom loss: 3.475550 * 1e-5
g_rec * L_rec = 2.821671 * 1e-5
g_en * L_en = 0.653878 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 466.79 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.362566
g_rec * L_rec = 2.725667 * 1e-5
g_en * L_en = 0.636899 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.50 s
Epoch #50:
train: 100%|███████████████████████████████████████████████| 469/469 [07:49<00:00, 1.00s/it]
Training results
custom loss: 3.463909 * 1e-5
g_rec * L_rec = 2.810879 * 1e-5
g_en * L_en = 0.653030 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 469.12 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.15it/s]
Validation results
custom loss * 1e5: 3.357945
g_rec * L_rec = 2.720305 * 1e-5
g_en * L_en = 0.637640 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.81 s
Epoch #55:
train: 100%|███████████████████████████████████████████████| 469/469 [07:45<00:00, 1.01it/s]
Training results
custom loss: 3.453883 * 1e-5
g_rec * L_rec = 2.801488 * 1e-5
g_en * L_en = 0.652395 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 465.95 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.342818
g_rec * L_rec = 2.705650 * 1e-5
g_en * L_en = 0.637168 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.50 s
Epoch #60:
train: 100%|███████████████████████████████████████████████| 469/469 [07:46<00:00, 1.01it/s]
Training results
custom loss: 3.444665 * 1e-5
g_rec * L_rec = 2.792452 * 1e-5
g_en * L_en = 0.652213 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 466.61 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.17it/s]
Validation results
custom loss * 1e5: 3.333549
g_rec * L_rec = 2.696184 * 1e-5
g_en * L_en = 0.637365 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.48 s
Epoch #65:
train: 100%|███████████████████████████████████████████████| 469/469 [07:48<00:00, 1.00it/s]
Training results
custom loss: 3.436591 * 1e-5
g_rec * L_rec = 2.784726 * 1e-5
g_en * L_en = 0.651865 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 468.73 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.16it/s]
Validation results
custom loss * 1e5: 3.330884
g_rec * L_rec = 2.692881 * 1e-5
g_en * L_en = 0.638003 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.60 s
Epoch #70:
train: 100%|███████████████████████████████████████████████| 469/469 [07:49<00:00, 1.00s/it]
Training results
custom loss: 3.429498 * 1e-5
g_rec * L_rec = 2.777646 * 1e-5
g_en * L_en = 0.651852 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 469.53 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:37<00:00, 2.13it/s]
Validation results
custom loss * 1e5: 3.320256
g_rec * L_rec = 2.683382 * 1e-5
g_en * L_en = 0.636874 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 37.14 s
Epoch #75:
train: 100%|███████████████████████████████████████████████| 469/469 [07:52<00:00, 1.01s/it]
Training results
custom loss: 3.422733 * 1e-5
g_rec * L_rec = 2.771069 * 1e-5
g_en * L_en = 0.651663 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 472.83 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:36<00:00, 2.15it/s]
Validation results
custom loss * 1e5: 3.323554
g_rec * L_rec = 2.684794 * 1e-5
g_en * L_en = 0.638760 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 36.82 s
Epoch #80:
train: 100%|███████████████████████████████████████████████| 469/469 [09:11<00:00, 1.18s/it]
Training results
custom loss: 3.416787 * 1e-5
g_rec * L_rec = 2.765276 * 1e-5
g_en * L_en = 0.651512 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 551.17 s
validation: 100%|████████████████████████████████████████████| 79/79 [00:42<00:00, 1.88it/s]
Validation results
custom loss * 1e5: 3.306052
g_rec * L_rec = 2.669409 * 1e-5
g_en * L_en = 0.636643 * 1e-5
g_eff * L_eff = 0.000000 * 1e-5
------------ 42.07 s
[ ]:
[75]:

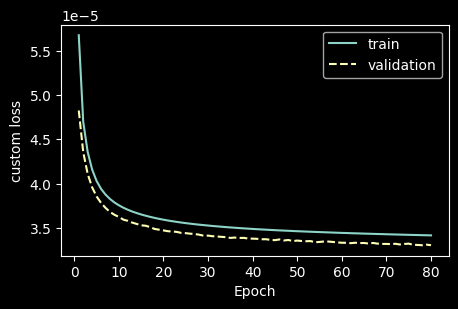

# learning curve
fig, ax0 = plt.subplots(1, 1, figsize=(5, 3))
ax0.plot(range(1, n_epochs + 1), np.array(train_epochs_losses), label='train')
ax0.plot(range(1, n_epochs + 1), np.array(val_epochs_losses), linestyle='dashed', label='validation')
ax0.set_ylabel(loss_func_name)
ax0.set_xlabel('Epoch')
# ax0.set_ylim([0.42 * 1e-5, 0.9 * 1e-5])
ax0.legend()
plt.show()
[76]:
# learning curve
fig, axs = plt.subplots(1, 3, figsize=(12, 3))
for ax, key in zip(axs, losses_parts_names):
ax.plot(range(1, n_epochs + 1), np.array(train_epochs_loss_parts[key]), label='train')
ax.plot(range(1, n_epochs + 1), np.array(val_epochs_loss_parts[key]), linestyle='dashed', label='validation')
ax.set_title(key)
ax.set_xlabel('Epoch')
ax.legend()
plt.show()
[ ]:
[82]:
n_cols = NUM_ENCODER_LAYERS # number of columns for DiffractiveLayer's masks visualization
n_rows = 1
# plot wavefronts phase
fig, axs = plt.subplots(n_rows, n_cols, figsize=(n_cols * 3 + 2, n_rows * 3.2))
ind_diff_layer = 0
net_type = 'encoder'
cmap = 'gist_stern' # 'gist_stern' 'rainbow'
net_to_plot = autoencoder_to_train.encoder if net_type == 'encoder' else autoencoder_to_train.decoder
for ind_layer, layer in enumerate(net_to_plot):
if isinstance(layer, elements.DiffractiveLayer) or isinstance(layer, elements.SpatialLightModulator):
# plot masks for Diffractive layers
if n_rows > 1:
ax_this = axs[ind_diff_layer // n_cols][ind_diff_layer % n_cols]
else:
ax_this = axs[ind_diff_layer % n_cols]
# ax_this.set_title(titles[ind_module])
trained_mask = layer.mask.detach()
phase_mask_this = ax_this.imshow(
trained_mask, cmap=cmap,
# vmin=0, vmax=MAX_PHASE
)
ind_diff_layer += 1
if APERTURES: # select only a part within apertures!
x_frame = (x_layer_nodes - DETECTOR_SIZE[1]) / 2
y_frame = (y_layer_nodes - DETECTOR_SIZE[0]) / 2
ax_this.axis([x_frame, x_layer_nodes - x_frame, y_layer_nodes - y_frame, y_frame])
fig.subplots_adjust(right=0.85)
cbar_ax = fig.add_axes([0.87, 0.15, 0.01, 0.7])
plt.colorbar(phase_mask_this, cax=cbar_ax)
plt.show()
[ ]:
[78]:
# array with all losses
all_lasses_header = ','.join([
'train_l_rec', 'train_l_en', 'train_l_eff', 'loss_train',
'val_l_rec', 'val_l_en', 'val_l_eff', 'loss_val',
])
all_losses_array = np.array(
[
train_epochs_loss_parts['l_rec'], train_epochs_loss_parts['l_en'], train_epochs_loss_parts['l_eff'], train_epochs_losses,
val_epochs_loss_parts['l_rec'], val_epochs_loss_parts['l_en'], val_epochs_loss_parts['l_eff'], val_epochs_losses
]
).T
[79]:
# filepath to save the model
model_filepath = f'{RESULTS_FOLDER}/autoencoder_net.pth'
# filepath to save losses
losses_filepath = f'{RESULTS_FOLDER}/training_curves.csv'
[80]:
# saving model
torch.save(autoencoder_to_train.state_dict(), model_filepath)
[81]:
# saving losses
np.savetxt(
losses_filepath, all_losses_array,
delimiter=',', header=all_lasses_header, comments=""
)
[ ]:
[ ]:
[ ]:
4.4. Examples of encoding/decoding
4.4.1. Select a sample to encode/decode
[108]:
n_test_examples = 5
random.seed(78)
test_examples_ids = random.sample(range(len(mnist_wf_test_ds)), n_test_examples)
[ ]:
[109]:
fig, axs = plt.subplots(1, n_test_examples, figsize=(n_test_examples * 3, 3))
cmap = 'grey'
for ax, ind_test in zip(axs, test_examples_ids):
test_wavefront, test_target = mnist_wf_test_ds[ind_test]
ax.set_title(f'{ind_test}')
ax.imshow(test_wavefront.intensity, cmap=cmap)
# ax.set_xticks([])
# ax.set_yticks([])
plt.show()
[ ]:

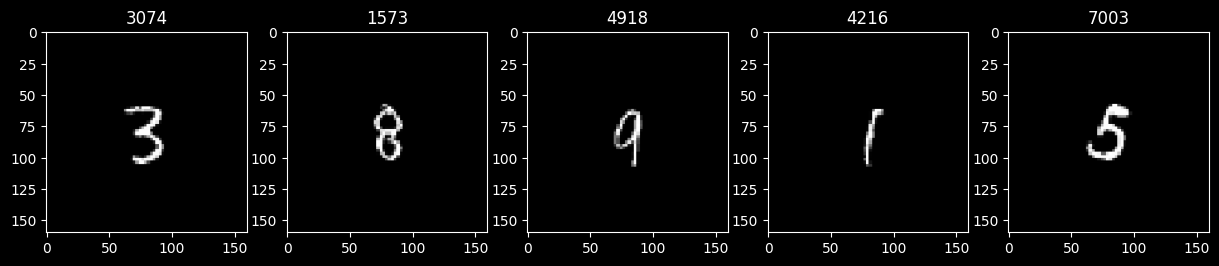

4.4.2. Encode/decode an example
[93]:
def encode_and_decode(autoencoder, input_wf, use_encoder_aperture=False):
# if use_encoder_aperture is True - apply strickt square aperture to encoded image
# aperture is defined as REGION_MASK, that was used in loss!
with torch.no_grad():
# ENCODE
encoded_image = autoencoder.encode(input_wf)
if not PRESERVE_PHASE:
encoded_image = encoded_image.abs() + 0j # reset phases before decoding!
if use_encoder_aperture:
encoded_image = encoded_image * REGION_MASK # apply aperture for encoded image
# DECODE
decoded_image = autoencoder.decode(encoded_image)
if not PRESERVE_PHASE:
decoded_image = decoded_image.abs() + 0j # reset phases before decoding!
return encoded_image, decoded_image
[ ]:

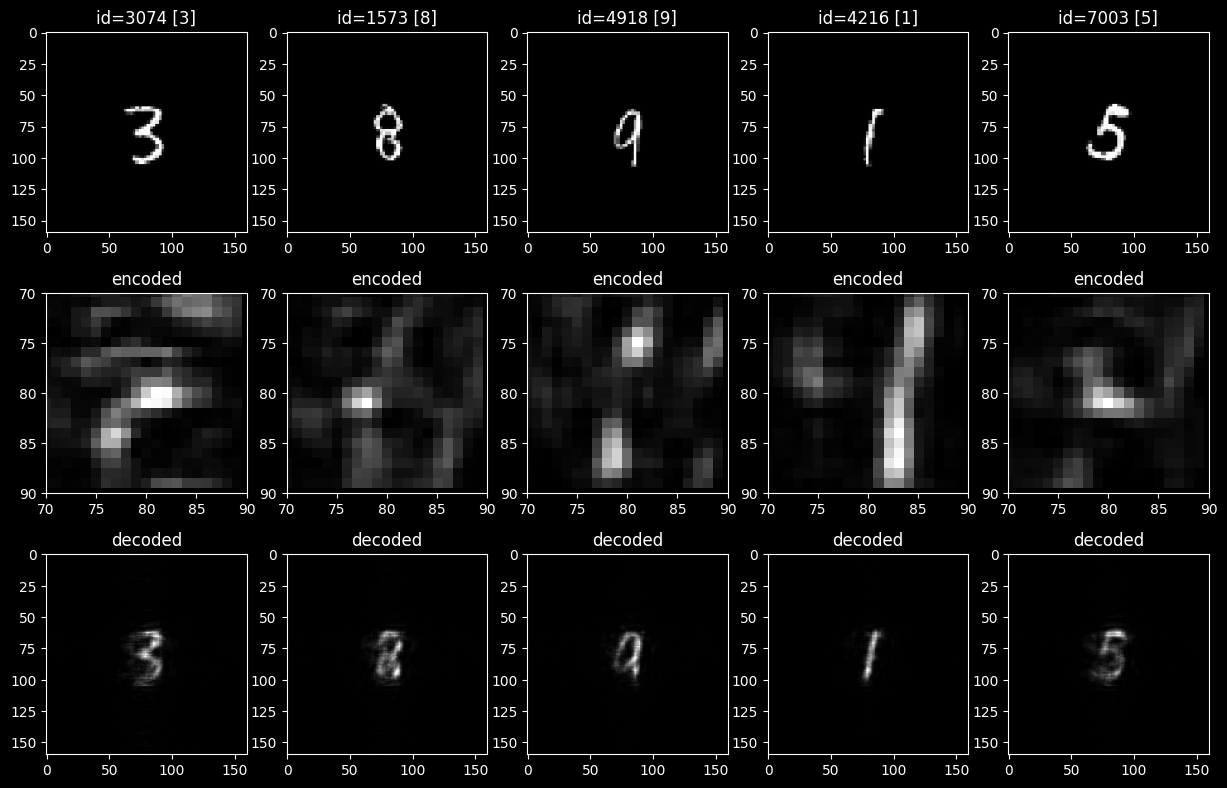

[110]:
n_lines = 3 # image / encoded / decoded
fig, axs = plt.subplots(n_lines, n_test_examples, figsize=(n_test_examples * 3, n_lines * 3.2))
to_plot = 'amp' # <--- chose what to plot
cmap = 'grey' # choose colormaps
use_encoder_aperture = True
max_amp = 1 # upper limits for colorplots
max_phase = 2 * torch.pi
for ind_ex, ind_test in enumerate(test_examples_ids):
ax_image, ax_encoded, ax_decoded = axs[0][ind_ex], axs[1][ind_ex], axs[2][ind_ex]
test_wavefront, test_target = mnist_wf_test_ds[ind_test]
ax_image.set_title(f'id={ind_test} [{test_target}]')
if to_plot == 'amp':
ax_image.imshow(
test_wavefront.intensity, cmap=cmap,
# vmin=0, vmax=max_amp
)
if to_plot == 'phase':
ax_image.imshow(
test_wavefront.phase, cmap=cmap,
# vmin=0, vmax=max_phase
)
encoded_this, decoded_this = encode_and_decode(
autoencoder_to_train, test_wavefront, use_encoder_aperture
)
ax_encoded.set_title('encoded')
if to_plot == 'amp':
ax_encoded.imshow(
encoded_this.intensity, cmap=cmap,
# vmin=0, vmax=max_amp
)
if to_plot == 'phase':
ax_encoded.imshow(
encoded_this.phase, cmap=cmap,
# vmin=0, vmax=max_phase
)
if use_encoder_aperture: # select only a part within apertures!
x_frame = (x_layer_nodes - REGION_MASK_SIZE[1]) / 2
y_frame = (y_layer_nodes - REGION_MASK_SIZE[0]) / 2
ax_encoded.set_xlim([x_frame, x_layer_nodes - x_frame])
ax_encoded.set_ylim([y_layer_nodes - y_frame, y_frame])
ax_decoded.set_title('decoded')
if to_plot == 'amp':
ax_decoded.imshow(
decoded_this.intensity, cmap=cmap,
# vmin=0, vmax=max_amp
)
if to_plot == 'phase':
ax_decoded.imshow(
decoded_this.phase, cmap=cmap,
# vmin=0, vmax=max_phase
)
plt.show()
[ ]:
[ ]:
