Convolutional Diffractive Network

This notebook is based on the article “Optical Diffractive Convolutional Neural Networks Implemented in an All-Optical Way” [1].

… combining the 4f system as an optical convolutional layer and the diffractive networks

Imports

import os
import sys
import random

import time
import json

# import warnings
# warnings.simplefilter("always")  # always show warnings!

import numpy as np

from collections import Counter

import torch
from torch.utils.data import Dataset

from torch import nn

from torch.nn import functional

import torchvision
import torchvision.transforms as transforms

from torchvision.transforms import InterpolationMode

# our library
from svetlanna import SimulationParameters
from svetlanna.parameters import ConstrainedParameter

# our library
from svetlanna import Wavefront
from svetlanna import elements
from svetlanna.detector import Detector, DetectorProcessorClf

from svetlanna.transforms import ToWavefront

# dataset
from src.wf_datasets import DatasetOfWavefronts

from tqdm import tqdm

from datetime import datetime

import matplotlib.pyplot as plt
import matplotlib.patches as patches
from mpl_toolkits.axes_grid1 import make_axes_locatable

plt.style.use('dark_background')
%matplotlib inline
# %config InlineBackend.figure_format = 'retina'

today_date = datetime.today().strftime('%d-%m-%Y_%H-%M')  # date for a results folder name
today_date

'11-04-2025_00-38'

# Define all necessery variables for that notebook
VARIABLES = {
    # FILEPATHES
    'data_path': './data',  # folder which will be created (if not exists) to load/store Weizmann dataset
    'results_path': f'models/convolutional/conv_exp_{today_date}',  # filepath to save results!

    # GENERAL SETTINGS - SECTION 1 of the notebook
    'wavelength': 750 * 1e-6,  # working wavelength, in [m]
    'neuron_size': 0.5 * 750 * 1e-6,  # size of a pixel for DiffractiveLayers, in [m]
    'mesh_size': (200, 200),  # full size of a layer = numerical mesh
        # Comment: value from the article [1] - (200, 200)

    'use_apertures': False,  # if we need to add apertures before each Diffractie layer
        # Comment: value from the article [1] - unknown
    'aperture_size': (64, 64),  # size of each aperture = a detector square for classes zones
        # Comment: value from the article [1] - unknown

    # DATASET OF SUBSEQUENCES SETTINGS - SECTION 2 of the notebook
    'resize': (28, 28),  # size to resize pictures to add 0th padding then (up to the mesh size)
        # Comment: value from the article: the input image of 28 * 28 pixels size
    'modulation': 'amp',  # modulation type to make a wavefront from each picture mask (see 2.3.2.)
        # Comment: can be equal to `phase`, `amp` or `both`

    # NETWORK - SECTION 3 of the notebook
    'max_phase': 2 * torch.pi,  # maximal possible phase for each DiffractiveLayer
    'free_space_method': 'AS',  # propagation method
        # Comment: can be 'AS' or 'fresnel'
    'distance': 3 * 1e-2,  # distance between diffractive layers

    # 4F-SYSTEM
    'focal_length': 3 * 1e-2,  # in [m]
    'lens_radius': torch.inf,
        # Comment: if a lens radius is equal to torch.inf - analytical lens!
    'learnable_kernel': False,

    # DIFFRACTIVE LAYERS
    'use_slm': False,  # use SLM (if True) or DiffractiveLayers (if False)
    'num_layers': 5,
    'init_phases': torch.pi,
    # value or a list of initial constant phases for DiffractiveLayers OR SLM
    # SLM settings - if 'use_slm' == True
        # Comment: a size of each SLM is equal to SimulationParameters!
    'slm_shapes': [(200, 200), (200, 200), (100, 100), (100, 100), (100, 100)],
        # list of size 'encoder_num_layers'
    'slm_levels': 256,
        # value OR a list (len = 'encoder_num_layers') of numbers of levels for each SLM
    'slm_step_funcs': 'linear',  # value OR a list of step function names
        # Comment: available stp functions names - 'linear'

    # NETWORK LEARNING - SECTION 4 of the notebook
    'calculate_accuracies': True,  # will be always True for CrossEnthropyLoss! (see 3.1.4.)
        # Comment: MSE loss used!
    'DEVICE': 'cpu',  # if `cuda` - we will check if it is available (see first cells of Sec. 4)
    'train_batch_size': 64,  # batch sizes for training (see 4.1.1.)
    'val_batch_size': 64,
        # Comment: value from the article [1] - 64  # for both train and test?
    'adam_lr': 0.01,  # learning rate for Adam optimizer (see 4.1.2.)
        # Comment: value from the article [1] - 0.01
    'number_of_epochs': 20,  # number of epochs to train
        # Comment: value from the article [1] - 100-300 ?!
}

# functions for SLM step (look documentation of SLM)
SLM_STEPS = {
    'linear': lambda x: x,
}

RESULTS_FOLDER = VARIABLES['results_path']

# create a directory to store results
if not os.path.exists(RESULTS_FOLDER):
    os.makedirs(RESULTS_FOLDER)

RESULTS_FOLDER

'models/convolutional/conv_exp_11-04-2025_00-38'

# save experiment conditions (VARIABLES dictionary)
with open(f'{RESULTS_FOLDER}/conditions.json', 'w', encoding ='utf8') as json_file:
    json.dump(VARIABLES, json_file, ensure_ascii = True)

1. Simulation parameters

Since in [1] there are no details, we took physical parameters from another article [2], which we used in some previous notebooks.

working_wavelength = VARIABLES['wavelength']  # [m] - like for MNIST

c_const = 299_792_458  # [m / s]
working_frequency = c_const / working_wavelength # [Hz]

print(f'lambda    = {working_wavelength * 1e3:.3f} mm')
print(f'frequency = {working_frequency / 1e12:.3f} THz')

lambda    = 0.750 mm
frequency = 0.400 THz

# neuron size (square)
neuron_size = VARIABLES['neuron_size']  # [m] - like for MNIST
print(f'neuron size = {neuron_size * 1e3:.3f} mm')

neuron size = 0.375 mm

APERTURES = VARIABLES['use_apertures']  # add apertures BEFORE each diffractive layer or not

LAYER_SIZE = VARIABLES['mesh_size']  # mesh size
DETECTOR_SIZE = VARIABLES['aperture_size']

# number of neurons in simulation
x_layer_nodes = LAYER_SIZE[1]
y_layer_nodes = LAYER_SIZE[0]
# Comment: Same size as proposed!

print(f'Layer size (in neurons): {x_layer_nodes} x {y_layer_nodes} = {x_layer_nodes * y_layer_nodes}')

Layer size (in neurons): 200 x 200 = 40000

# physical size of each layer
x_layer_size_m = x_layer_nodes * neuron_size  # [m]
y_layer_size_m = y_layer_nodes * neuron_size

print(f'Layer size (in mm): {x_layer_size_m * 1e3 :.3f} x {y_layer_size_m * 1e3 :.3f}')

Layer size (in mm): 75.000 x 75.000

X_LAYER_SIZE_M = x_layer_size_m
Y_LAYER_SIZE_M = y_layer_size_m

# simulation parameters for the rest of the notebook

SIM_PARAMS = SimulationParameters(
    axes={
        'W': torch.linspace(-x_layer_size_m / 2, x_layer_size_m / 2, x_layer_nodes),
        'H': torch.linspace(-y_layer_size_m / 2, y_layer_size_m / 2, y_layer_nodes),
        'wavelength': working_wavelength,  # only one wavelength!
    }
)

2. Dataset preparation

2.1. MNIST Dataset

# initialize a directory for a dataset
MNIST_DATA_FOLDER = VARIABLES['data_path']  # folder to store data

NUM_CLASSES = 10

2.1.1. Load Train and Test datasets of images

# TRAIN (images)
mnist_train_ds = torchvision.datasets.MNIST(
    root=MNIST_DATA_FOLDER,
    train=True,  # for train dataset
    download=True,
)

# TEST (images)
mnist_test_ds = torchvision.datasets.MNIST(
    root=MNIST_DATA_FOLDER,
    train=False,  # for test dataset
    download=True,
)

print(f'Train data: {len(mnist_train_ds)}')
print(f'Test data : {len(mnist_test_ds)}')

Train data: 60000
Test data : 10000

2.1.2. Create Train and Test datasets of wavefronts

the input image of \(28 \times 28\) pixels size was expanded to \(200 \times 200\) with zero padding

# select modulation type
MODULATION_TYPE = VARIABLES['modulation']  # using ONLY amplitude to encode each picture in a Wavefront!
RESIZE_SHAPE = VARIABLES['resize']  # size to resize pictures to add 0th padding then (up to the mesh size)

resize_y = RESIZE_SHAPE[0]
resize_x = RESIZE_SHAPE[1]  # shape for transforms.Resize

# paddings along OY
pad_top = int((y_layer_nodes - resize_y) / 2)
pad_bottom = y_layer_nodes - pad_top - resize_y
# paddings along OX
pad_left = int((x_layer_nodes - resize_x) / 2)
pad_right = x_layer_nodes - pad_left - resize_x  # params for transforms.Pad

# compose all transforms!
image_transform_for_ds = transforms.Compose(
  [
      transforms.ToTensor(),
      transforms.Resize(
          size=(resize_y, resize_x),
          interpolation=InterpolationMode.NEAREST,
      ),
      transforms.Pad(
          padding=(
              pad_left,  # left padding
              pad_top,  # top padding
              pad_right,  # right padding
              pad_bottom  # bottom padding
          ),
          fill=0,
      ),  # padding to match sizes!
      ToWavefront(modulation_type=MODULATION_TYPE)  # <- selected modulation type here!!!
  ]
)

import src.detector_segmentation as detector_segmentation

number_of_classes = NUM_CLASSES

detector_segment_size = 6.4 * working_wavelength

# size of each segment in neurons
x_segment_nodes = int(detector_segment_size / neuron_size)
y_segment_nodes = int(detector_segment_size / neuron_size)
# each segment of size = (y_segment_nodes, x_segment_nodes)

y_boundary_nodes = y_segment_nodes * 12
x_boundary_nodes = x_segment_nodes * 12

DETECTOR_MASK = detector_segmentation.squares_mnist(
    y_boundary_nodes, x_boundary_nodes,  # size of a detector or an aperture (in the middle of detector)
    SIM_PARAMS
)

To visualize detector zones (for further use)

ZONES_HIGHLIGHT_COLOR = 'r'
ZONES_LW = 0.5
selected_detector_mask = DETECTOR_MASK.clone().detach()

def get_zones_patches(detector_mask):
    """
    Returns a list of patches to draw zones in final visualisation
    """
    zones_patches = []

    delta = 1 #0.5

    for ind_class in range(number_of_classes):
        idx_y, idx_x = (detector_mask == ind_class).nonzero(as_tuple=True)

        zone_rect = patches.Rectangle(
            (idx_x[0] - delta, idx_y[0] - delta),
            idx_x[-1] - idx_x[0] + 2 * delta, idx_y[-1] - idx_y[0] + 2 * delta,
            linewidth=ZONES_LW,
            edgecolor=ZONES_HIGHLIGHT_COLOR,
            facecolor='none'
        )

        zones_patches.append(zone_rect)

    return zones_patches

Visualize mask

fig, ax0 = plt.subplots(1, 1, figsize=(3, 3))

ax0.set_title(f'Detector segments')
ax0.imshow(selected_detector_mask, cmap='grey')

for zone in get_zones_patches(selected_detector_mask):
    # add zone's patches to the axis
    # zone_copy = copy(zone)
    ax0.add_patch(zone)

plt.show()

# TRAIN dataset of WAVEFRONTS
mnist_wf_train_ds = DatasetOfWavefronts(
    init_ds=mnist_train_ds,  # dataset of images
    transformations=image_transform_for_ds,  # image transformation
    sim_params=SIM_PARAMS,  # simulation parameters
    target='detector',
    detector_mask=DETECTOR_MASK
)

# TEST dataset of WAVEFRONTS
mnist_wf_test_ds = DatasetOfWavefronts(
    init_ds=mnist_test_ds,  # dataset of images
    transformations=image_transform_for_ds,  # image transformation
    sim_params=SIM_PARAMS,  # simulation parameters
    target='detector',
    detector_mask=DETECTOR_MASK
)

print(f'Train data: {len(mnist_train_ds)}')
print(f'Test data : {len(mnist_test_ds)}')

Train data: 60000
Test data : 10000

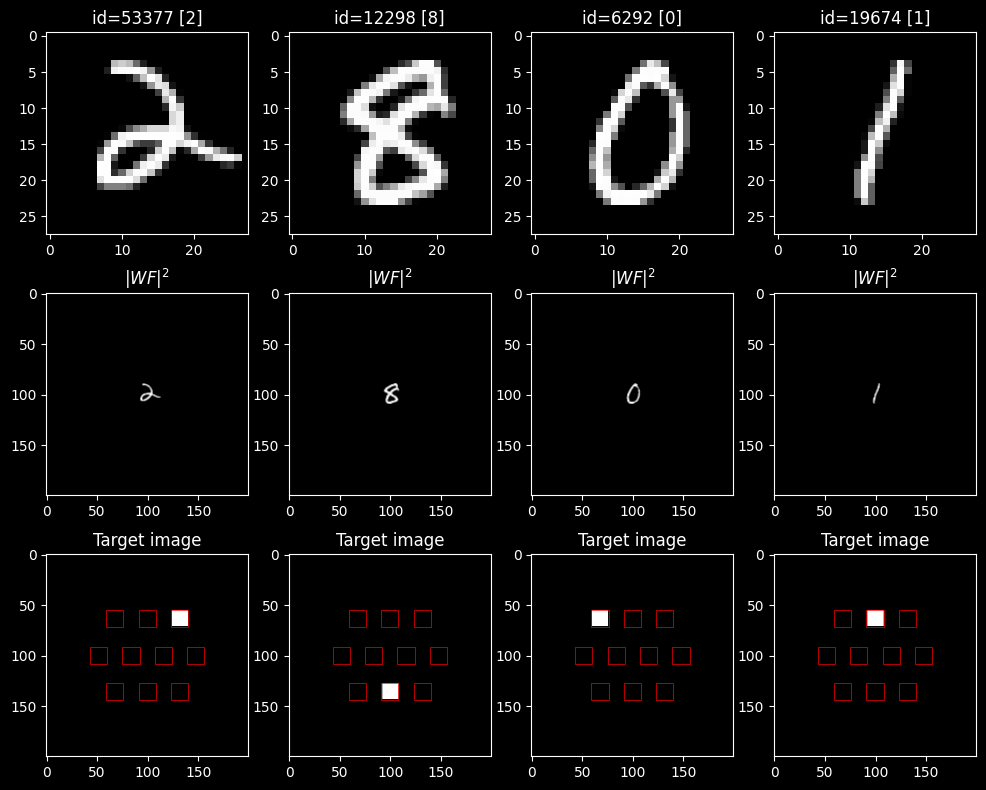

# plot several EXAMPLES from TRAIN dataset
n_examples= 4  # number of examples to plot
# choosing indecies of images (from train) to plot
random.seed(78)
train_examples_ids = random.sample(range(len(mnist_train_ds)), n_examples)

all_examples_wavefronts = []

n_lines = 3
fig, axs = plt.subplots(n_lines, n_examples, figsize=(n_examples * 3, n_lines * 3.2))
for ind_ex, ind_train in enumerate(train_examples_ids):
    image, label = mnist_train_ds[ind_train]

    axs[0][ind_ex].set_title(f'id={ind_train} [{label}]')
    axs[0][ind_ex].imshow(image, cmap='gray')

    wavefront, target_image = mnist_wf_train_ds[ind_train]
    assert isinstance(wavefront, Wavefront)

    all_examples_wavefronts.append(wavefront)

    axs[1][ind_ex].set_title(f'$|WF|^2$')
    # here we can plot intensity for a wavefront
    axs[1][ind_ex].imshow(
        wavefront.intensity, cmap='gray',
        vmin=0, vmax=1
    )

    axs[2][ind_ex].set_title(f'Target image')
    axs[2][ind_ex].imshow(
        target_image, cmap='gray',
        vmin=0, vmax= 1
    )

    for zone in get_zones_patches(selected_detector_mask):
        # add zone's patches to the axis
        # zone_copy = copy(zone)
        axs[2][ind_ex].add_patch(zone)

plt.show()

3. Diffractive Network with Convolutional Layer

FS_METHOD = VARIABLES['free_space_method']
FS_DISTANCE = VARIABLES['distance']  # [m] - distance between difractive layers

MAX_PHASE = VARIABLES['max_phase']

3.1. Optical Convolutional Layer

See Figure 2 in [1]!

FOCAL_LENGTH = VARIABLES['focal_length']
LENS_R = VARIABLES['lens_radius']

LEARN_CONV = VARIABLES['learnable_kernel']

3.1.1. Function to return 4f system

def get_free_space(
    freespace_sim_params,
    freespace_distance,  # in [m]!
    freespace_method='AS',
):
    """
    Returns FreeSpace layer with a bounded distance parameter.
    """
    return elements.FreeSpace(
        simulation_parameters=freespace_sim_params,
        distance=freespace_distance,  # distance is not learnable!
        method=freespace_method
    )

def get_4f_convolutional_layer(
    sim_params,
    focal_length,  # in [m]
    lens_radius,  # in [m]
    convolutional_mask,  # mask from 0 to max_phase
    learnable_mask = False,  # if a convolutional mask is learnable
    max_phase=2 * torch.pi,
    freespace_method='AS',
):
    """
    Returns a list of elements for a 4f system with a Diffractive layer in a Fourier plane.
    """
    if learnable_mask:
        diff_layer = elements.DiffractiveLayer(
            simulation_parameters=sim_params,
            mask=ConstrainedParameter(
                convolutional_mask,
                min_value=0,
                max_value=max_phase
            ),  # HERE WE ARE USING CONSTRAINED PARAMETER!
        )
    else:
        diff_layer = elements.DiffractiveLayer(
            simulation_parameters=sim_params,
            mask=convolutional_mask,  # mask is not changing during the training!
        )

    return [
        get_free_space(
            sim_params, focal_length, freespace_method
        ),
        elements.ThinLens(sim_params, focal_length, lens_radius),
        get_free_space(
            sim_params, focal_length, freespace_method
        ),
        diff_layer,  # DiffractiveLayer in a Fourier plane!
        get_free_space(
            sim_params, focal_length, freespace_method
        ),
        elements.ThinLens(sim_params, focal_length, lens_radius),
        get_free_space(
            sim_params, focal_length, freespace_method
        ),
    ]

3.1.2. Mask for a DiffractiveLayer placed in a Fourier plane

Citations from [1]

In the convolution layer, \(16\) convolution kernels were discretized into a \(4 \times 4\) array and tiled into a \(200 \times 200\) size planar space, as shown in Figure 6.

from kernels.kernels import *

# Generate All 16 Kernels

def generate_16_kernels(size=9):
    k3 = predefined_3x3_kernels()

    kernels = [
        gaussian_kernel(size, sigma=1.0),
        gaussian_kernel(size, sigma=2.0),
        laplacian_of_gaussian(size, sigma=1.0),
        gabor_kernel(size, theta=0),
        gabor_kernel(size, theta=math.pi / 4),
        gabor_kernel(size, theta=math.pi / 2),
        gabor_kernel(size, theta=3 * math.pi / 4),
        upscale_kernel(k3['sobel_x'], size),
        upscale_kernel(k3['sobel_y'], size),
        upscale_kernel(k3['prewitt_x'], size),
        upscale_kernel(k3['prewitt_y'], size),
        upscale_kernel(k3['emboss'], size),
        identity_kernel(size),
        center_surround_edge_kernel(size),
        gabor_kernel(size, theta=math.pi / 8),
        gabor_kernel(size, theta=5 * math.pi / 8)
    ]

    return torch.stack(kernels)  # shape: (16, 9, 9)

# TODO: Randomly mix kernels before arrangement!
def embed_equally_spaced_kernels(canvas_size=200, grid_size=4, kernel_size=9):

    spacing = (canvas_size - (grid_size * kernel_size)) // (grid_size + 1)  # == 32
    kernels = generate_16_kernels()  # (16, 9, 9)
    canvas = torch.zeros((canvas_size, canvas_size))

    idx = 0
    for i in range(grid_size):
        for j in range(grid_size):
            y = spacing + i * (kernel_size + spacing)
            x = spacing + j * (kernel_size + spacing)
            canvas[y:y + kernel_size, x:x + kernel_size] = kernels[idx]
            idx += 1

    return canvas

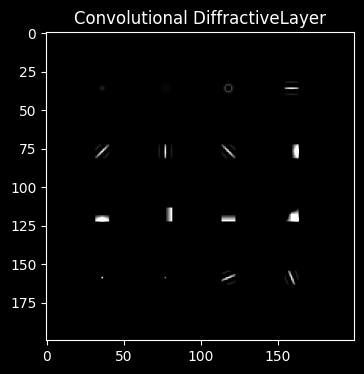

KERNELS_MASK = embed_equally_spaced_kernels() * MAX_PHASE

fig, ax0 = plt.subplots(1, 1, figsize=(4, 4))

ax0.set_title(f'Convolutional DiffractiveLayer')
ax0.imshow(KERNELS_MASK, cmap='grey', vmin=0, vmax=MAX_PHASE)

plt.show()

3.1.3. Convolution Layer (4f system)

CONV_LAYER = get_4f_convolutional_layer(
    SIM_PARAMS,
    FOCAL_LENGTH,  # in [m]
    LENS_R,  # in [m]
    KERNELS_MASK,  # mask from 0 to max_phase
    learnable_mask=LEARN_CONV,  # if a convolutional mask is learnable
    max_phase=MAX_PHASE,
    freespace_method=FS_METHOD,
)

3.2. Optical Network after a Convolutional Layer

USE_SLM = VARIABLES['use_slm']
NUM_LAYERS = VARIABLES['num_layers']  # number of diffractive layers

if isinstance(VARIABLES['init_phases'], list):
    INIT_PHASES = VARIABLES['init_phases']
else:
    INIT_PHASES = [VARIABLES['init_phases'] for _ in range(NUM_LAYERS)]


assert len(INIT_PHASES) == NUM_LAYERS

if USE_SLM:
    SLM_VARIABLES = {}

    for key in ['slm_shapes', 'slm_levels', 'slm_step_funcs']:
        if key != 'slm_step_funcs':

            if isinstance(VARIABLES[key], list):
                SLM_VARIABLES[key] = VARIABLES[key]
            else:  # all SLM's have the same parameter
                SLM_VARIABLES[key] = [VARIABLES[key] for _ in range(NUM_LAYERS)]

        else:  # for step functions!

            if isinstance(VARIABLES[key], list):
                SLM_VARIABLES[key] = [SLM_STEPS[name] for name in VARIABLES[key]]
            else:  # all SLM's have the same parameter
                SLM_VARIABLES[key] = [SLM_STEPS[VARIABLES[key]] for _ in range(NUM_LAYERS)]

        assert len(SLM_VARIABLES[key]) == NUM_LAYERS

3.2.1. Functions to get new elements

# functions that return single elements for further architecture
def get_const_phase_layer(
    sim_params: SimulationParameters,
    value, max_phase=2 * torch.pi
):
    """
    Returns DiffractiveLayer with a constant phase mask.
    """
    x_nodes, y_nodes = sim_params.axes_size(axs=('W', 'H'))

    const_mask = torch.ones(size=(y_nodes, x_nodes)) * value

    return elements.DiffractiveLayer(
        simulation_parameters=sim_params,
        mask=ConstrainedParameter(
            const_mask,
            min_value=0,
            max_value=max_phase
        ),  # HERE WE ARE USING CONSTRAINED PARAMETER!
    )  # ATTENTION TO DOCUMENTATION!


# CHANGE ACCORDING TO THE DOCUMENTATION OF SLM!
def get_const_slm_layer(
    sim_params: SimulationParameters,
    mask_shape,
    phase_value,
    num_levels,
    step_func,
    height_m=Y_LAYER_SIZE_M,
    width_m=X_LAYER_SIZE_M,
    max_phase=2 * torch.pi
):
    """
    Returns SpatialLightModulator with a constant phase mask.
    """
    y_nodes, x_nodes = mask_shape
    const_mask = torch.ones(size=(y_nodes, x_nodes)) * phase_value

    return elements.SpatialLightModulator(
        simulation_parameters=sim_params,
        mask=ConstrainedParameter(
            const_mask,
            min_value=0,
            max_value=max_phase
        ),  # HERE WE ARE USING CONSTRAINED PARAMETER!
        height=height_m,
        width=width_m,
        # location=(0., 0.),  # by default
        number_of_levels=num_levels,
        step_function=step_func,
        # mode='nearest',  # by default it is 'nearest'
    )  # ATTENTION TO DOCUMENTATION!

3.2.2. Elements list

Function to get a list of elements to reproduce an architecture:

def get_elements_list(
    num_layers,
    simulation_parameters,
    freespace_distance,
    freespace_method,
    apertures=False,
    aperture_size=(100, 100),
):
    """
    Composes a list of elements for an encoder (with no Detector).
    ...

    Parameters
    ----------
    num_layers : int
        Number of layers in the system.
    simulation_parameters : SimulationParameters()
        A simulation parameters for a task.
    freespace_distance : float,
        A distance between phase layers in [m].
    freespace_method : str
        Propagation method for free spaces in a setup.

    apertures : bool
        If True, than before each DiffractiveLayer (and detector) we add a square aperture.
        Comment: there are strickt square apertures!
    aperture_size : tuple
        A size of square apertures.

    mode : str
        Takes values: 'encoder' or 'decoder'.

    Returns
    -------
    elements_list : list(Element)
        List of Elements for an encoder/decoder.
    """
    elements_list = []  # list of elements

    use_slm = USE_SLM
    init_phases = INIT_PHASES
    if use_slm:
        slm_masks_shape = SLM_VARIABLES['encoder_slm_shapes']
        slm_levels = SLM_VARIABLES['encoder_slm_levels']
        slm_funcs = SLM_VARIABLES['encoder_slm_step_funcs']

    if apertures:  # equal masks for all apertures (select a part in the middle)
        aperture_mask = torch.ones(size=aperture_size)

        y_nodes, x_nodes = simulation_parameters.axes_size(axs=('H', 'W'))
        y_mask, x_mask = aperture_mask.size()
        pad_top = int((y_nodes - y_mask) / 2)
        pad_bottom = y_nodes - pad_top - y_mask
        pad_left = int((x_nodes - x_mask) / 2)
        pad_right = x_nodes - pad_left - x_mask  # params for transforms.Pad

        # padding transform to match aperture size with simulation parameters
        aperture_mask = functional.pad(
            input=aperture_mask,
            pad=(pad_left, pad_right, pad_top, pad_bottom),
            mode='constant',
            value=0
        )

    # first FreeSpace layer before first DiffractiveLayer
    # after 4f-system already have a FreeSpace

    # compose the architecture
    for ind_layer in range(num_layers):

        # add strickt square Aperture
        if apertures:
            elements_list.append(
                elements.Aperture(
                    simulation_parameters=simulation_parameters,
                    mask=aperture_mask
                )
            )

        # ------------------------------------------------------------PHASE LAYER
        if use_slm:  # add a phase layer (SLM or DiffractiveLayer)
            # add SLM (learnable phase mask)
            elements_list.append(
                get_const_slm_layer(
                    simulation_parameters,
                    mask_shape=slm_masks_shape[ind_layer],
                    phase_value=init_phases[ind_layer],
                    num_levels=slm_levels[ind_layer],
                    step_func=slm_funcs[ind_layer],
                    max_phase=MAX_PHASE
                )
            )
        else:
            # add DiffractiveLayer (learnable phase mask)
            elements_list.append(
                get_const_phase_layer(
                    simulation_parameters,
                    value=init_phases[ind_layer],
                    max_phase=MAX_PHASE
                )
            )
        # -----------------------------------------------------------------------

        # add FreeSpace
        elements_list.append(
            get_free_space(
                simulation_parameters,  # simulation parameters for the notebook
                freespace_distance,  # in [m]
                freespace_method=freespace_method,
            )
        )

    # ---------------------------------------------------------------------------
    # add Detector in the end of the system!
    elements_list.append(
        Detector(
            simulation_parameters=simulation_parameters,
            func='intensity'  # detector that returns intensity
        )
    )

    return elements_list

3.3. Model with a Convolutional Layer (4f System)

3.3.1. Model Class

class ConvolutionalSystem(nn.Module):
    """
    A simple convolutional network with a 4f system as an optical convolutional layer.
    """

    def __init__(
        self,
        sim_params: SimulationParameters,
        conv_layer_list: list,
        num_layers: int,
        fs_distance: float,
        fs_method: str = 'AS',
        device: str | torch.device = torch.get_default_device(),
    ):
        """
        Parameters
        ----------
        sim_params : SimulationParameters
            Simulation parameters for the task.
        conv_layer_list : list
            List of Elements for a Convolutional layer (4f system).
        num_layers : int
            Number of DiffractiveLayer's after 4f-system.
        fs_distance : float,
            A distance between phase layers in [m].
        fs_method : str
            Propagation method for free spaces in a setup.
        elements_list : list
            List of elements to compose a network after a Convolutional Layer.
        """
        super().__init__()

        self.sim_params = sim_params

        self.h, self.w = self.sim_params.axes_size(
            axs=('H', 'W')
        )  # height and width for a wavefronts

        self.__device = device
        self.fs_method = fs_method

        # CONVOLUTIONAL LAYER
        self.conv_layer_list = conv_layer_list
        self.conv_layer = nn.Sequential(*conv_layer_list).to(self.__device)

        # NETWORK
        elements_list = get_elements_list(
            num_layers,
            self.sim_params,
            fs_distance,
            fs_method,
            apertures=VARIABLES['use_apertures'],
            aperture_size=VARIABLES['aperture_size'],
        )  # Detector is here!

        # self.encoder_elements = encoder_elements_list
        self.net = nn.Sequential(*elements_list).to(self.__device)

    def stepwise_propagation(self, input_wavefront: Wavefront, mode: str='encode'):
        """
        Function that consistently applies forward method of each element of
        Convolution Layer or the Network after Convolution
        to an `input_wavefront`.

        Parameters
        ----------
        input_wavefront : torch.Tensor
            A wavefront that enters the optical network.
        mode : str
            Specify a mode 'convolution' or 'after convolution'.

        Returns
        -------
        str
            A string that represents a scheme of a propagation through a setup.
        list(torch.Tensor)
            A list of an input wavefront evolution during a propagation through a setup.
        """
        this_wavefront = input_wavefront
        # list of wavefronts while propagation of an initial wavefront through the system
        steps_wavefront = [this_wavefront]  # input wavefront is a zeroth step

        optical_scheme = ''  # string that represents a linear optical setup (schematic)

        if mode == 'convolution':
            net = self.conv_layer
        if mode == 'after convolution':
            net = self.net

        net.eval()
        for ind_element, element in enumerate(net):
            # for visualization in a console
            element_name = type(element).__name__
            optical_scheme += f'-({ind_element})-> [{ind_element + 1}. {element_name}] '

            if ind_element == len(net) - 1:
                optical_scheme += f'-({ind_element + 1})->'

            # element forward
            with torch.no_grad():
                this_wavefront = element.forward(this_wavefront)

            steps_wavefront.append(this_wavefront)  # add a wavefront to list of steps

        return optical_scheme, steps_wavefront

    def forward(self, wavefront_in):
        """
        Parameters
        ----------
        wavefront_in: Wavefront('bs', 'H', 'W')

        Returns
        -------
        detector_image : torch.Tensor
            Image on a Detector.
        """
        if len(wavefront_in.shape) > 2:  # if a batch is an input
            batch_flag = True
            bs = wavefront_in.shape[0]
        else:
            batch_flag = False

        # convolutional layer
        wavefront_after_convolution = self.conv_layer(wavefront_in)
        # other layers
        detector_image = self.net(wavefront_after_convolution)

        return detector_image

3.3.2. Empty model

def get_net():
    return ConvolutionalSystem(
        SIM_PARAMS,
        CONV_LAYER,
        NUM_LAYERS,
        FS_DISTANCE,
        FS_METHOD,
    )

3.4. Detector processor (to calculate accuracies only)

Comment: DetectorProcessor in our library is used to process an information on detector. For example, for the current task DetectorProcessor must return only 10 values (1 value per 1 class).

CALCULATE_ACCURACIES = VARIABLES['calculate_accuracies']
# if False, accuracies will not be calculated!

# create a DetectorProcessorOzcanClf object
if CALCULATE_ACCURACIES:
    detector_processor = DetectorProcessorClf(
        simulation_parameters=SIM_PARAMS,
        num_classes=NUM_CLASSES,
        segmented_detector=DETECTOR_MASK,
    )
else:
    detector_processor = None

3.1.4 Detector processor (to calculate accuracies only)

Comment: DetectorProcessor in our library is used to process an information on detector. For example, for the current task DetectorProcessor must return only 10 values (1 value per 1 class).

CALCULATE_ACCURACIES = VARIABLES['calculate_accuracies']  # if False, accuracies will not be calculated!

# create a DetectorProcessorOzcanClf object
if CALCULATE_ACCURACIES:
    detector_processor = DetectorProcessorClf(
        simulation_parameters=SIM_PARAMS,
        num_classes=NUM_CLASSES,
        segmented_detector=DETECTOR_MASK,
    )
else:
    detector_processor = None

4. Training of the network

DEVICE = VARIABLES['DEVICE']  # 'mps' is not support a CrossEntropyLoss

if DEVICE == 'cuda':
    DEVICE = torch.device('cuda' if torch.cuda.is_available() else 'cpu')

DEVICE

'cpu'

4.1. Prepare some stuff for training

4.1.1. DataLoader’s

Citations from methods of [1]:

The batch size set for the training process was \(64\).

train_bs = VARIABLES['train_batch_size']  # a batch size for training set
val_bs = VARIABLES['val_batch_size']

Forthis task, phase-only transmission masks weredesigned by training a five-layer \(D^2 NN\) with \(55000\) images (\(5000\) validation images) from theMNIST (Modified National Institute of Stan-dards and Technology) handwritten digit data-base.

# mnist_wf_train_ds
train_wf_ds, val_wf_ds = torch.utils.data.random_split(
    dataset=mnist_wf_train_ds,
    lengths=[55000, 5000],  # sizes from the article
    generator=torch.Generator().manual_seed(178)  # for reproducibility
)

train_wf_loader = torch.utils.data.DataLoader(
    train_wf_ds,
    batch_size=train_bs,
    shuffle=True,
    # num_workers=2,
    drop_last=False,
)

val_wf_loader = torch.utils.data.DataLoader(
    val_wf_ds,
    batch_size=val_bs,
    shuffle=False,
    # num_workers=2,
    drop_last=False,
)

test_wf_loader = torch.utils.data.DataLoader(
    mnist_wf_test_ds,
    batch_size=val_bs,
    shuffle=True,
    # num_workers=2,
    drop_last=False,
)

4.1.2. Optimizer and loss function

LR = VARIABLES['adam_lr']

def get_adam_optimizer(net):
    return torch.optim.Adam(
        params=net.parameters(),  # NETWORK PARAMETERS!
        lr=LR
    )

LOSS = 'MSE'

if LOSS == 'MSE':
    loss_func_clf = nn.MSELoss()  # by default: reduction='mean'
    loss_func_name = 'MSE'

4.1.3. Training and evaluation loops

def onn_train_mse(
    optical_net, wavefronts_dataloader,
    detector_processor_clf,  # DETECTOR PROCESSOR needed for accuracies only!
    loss_func, optimizer,
    device='cpu', show_process=False
):
    """
    Function to train `optical_net` (classification task)
    ...

    Parameters
    ----------
        optical_net : torch.nn.Module
            Neural Network composed of Elements.
        wavefronts_dataloader : torch.utils.data.DataLoader
            A loader (by batches) for the train dataset of wavefronts.
        detector_processor_clf : DetectorProcessorClf
            A processor of a detector image for a classification task, that returns `probabilities` of classes.
        loss_func :
            Loss function for a multi-class classification task.
        optimizer: torch.optim
            Optimizer...
        device : str
            Device to computate on...
        show_process : bool
            Flag to show (or not) a progress bar.

    Returns
    -------
        batches_losses : list[float]
            Losses for each batch in an epoch.
        batches_accuracies : list[float]
            Accuracies for each batch in an epoch.
        epoch_accuracy : float
            Accuracy for an epoch.
    """
    optical_net.train()  # activate 'train' mode of a model
    batches_losses = []  # to store loss for each batch
    batches_accuracies = []  # to store accuracy for each batch

    correct_preds = 0
    size = 0

    for batch_wavefronts, batch_targets in tqdm(
        wavefronts_dataloader,
        total=len(wavefronts_dataloader),
        desc='train', position=0,
        leave=True, disable=not show_process
    ):  # go by batches
        # batch_wavefronts - input wavefronts, batch_labels - labels
        batch_size = batch_wavefronts.size()[0]

        batch_wavefronts = batch_wavefronts.to(device)
        batch_targets = batch_targets.to(device)

        optimizer.zero_grad()

        # forward of an optical network
        detector_output = optical_net(batch_wavefronts)

        # calculate loss for a batch
        loss = loss_func(detector_output, batch_targets)

        loss.backward()
        optimizer.step()

        # ACCURACY
        if CALCULATE_ACCURACIES:
            # process a detector image
            batch_labels = detector_processor_clf.batch_forward(batch_targets).argmax(1)
            batch_probas = detector_processor_clf.batch_forward(detector_output)

            batch_correct_preds = (
                batch_probas.argmax(1) == batch_labels
            ).type(torch.float).sum().item()

            correct_preds += batch_correct_preds
            size += batch_size

        # accumulate losses and accuracies for batches
        batches_losses.append(loss.item())
        if CALCULATE_ACCURACIES:
            batches_accuracies.append(batch_correct_preds / batch_size)
        else:
            batches_accuracies.append(0.)

    if CALCULATE_ACCURACIES:
        epoch_accuracy = correct_preds / size
    else:
        epoch_accuracy = 0.

    return batches_losses, batches_accuracies, epoch_accuracy

def onn_validate_mse(
    optical_net, wavefronts_dataloader,
    detector_processor_clf,  # DETECTOR PROCESSOR NEEDED!
    loss_func,
    device='cpu', show_process=False
    ):
    """
    Function to validate `optical_net` (classification task)
    ...

    Parameters
    ----------
        optical_net : torch.nn.Module
            Neural Network composed of Elements.
        wavefronts_dataloader : torch.utils.data.DataLoader
            A loader (by batches) for the train dataset of wavefronts.
        detector_processor_clf : DetectorProcessorClf
            A processor of a detector image for a classification task, that returns `probabilities` of classes.
        loss_func :
            Loss function for a multi-class classification task.
        device : str
            Device to computate on...
        show_process : bool
            Flag to show (or not) a progress bar.

    Returns
    -------
        batches_losses : list[float]
            Losses for each batch in an epoch.
        batches_accuracies : list[float]
            Accuracies for each batch in an epoch.
        epoch_accuracy : float
            Accuracy for an epoch.
    """
    optical_net.eval()  # activate 'eval' mode of a model
    batches_losses = []  # to store loss for each batch
    batches_accuracies = []  # to store accuracy for each batch

    correct_preds = 0
    size = 0

    for batch_wavefronts, batch_targets in tqdm(
        wavefronts_dataloader,
        total=len(wavefronts_dataloader),
        desc='validation', position=0,
        leave=True, disable=not show_process
    ):  # go by batches
        # batch_wavefronts - input wavefronts, batch_labels - labels
        batch_size = batch_wavefronts.size()[0]

        batch_wavefronts = batch_wavefronts.to(device)
        batch_targets = batch_targets.to(device)

        with torch.no_grad():
            detector_outputs = optical_net(batch_wavefronts)
            # calculate loss for a batch
            loss = loss_func(detector_outputs, batch_targets)

        # ACCURACY
        if CALCULATE_ACCURACIES:
            # process a detector image
            batch_labels = detector_processor_clf.batch_forward(batch_targets).argmax(1)
            batch_probas = detector_processor_clf.batch_forward(detector_outputs)

            batch_correct_preds = (
                batch_probas.argmax(1) == batch_labels
            ).type(torch.float).sum().item()

            correct_preds += batch_correct_preds
            size += batch_size

        # accumulate losses and accuracies for batches
        batches_losses.append(loss.item())
        if CALCULATE_ACCURACIES:
            batches_accuracies.append(batch_correct_preds / batch_size)
        else:
            batches_accuracies.append(0.)

    if CALCULATE_ACCURACIES:
        epoch_accuracy = correct_preds / size
    else:
        epoch_accuracy = 0.

    return batches_losses, batches_accuracies, epoch_accuracy

4.2. Training of the optical network

4.2.1. Before training

a diffractive layer … neurons … were initialized with \(\pi\) for phase values and \(1\) for amplitude values …

SIM_PARAMS = SIM_PARAMS.to(DEVICE)

untrained_net = get_net().to(DEVICE)
if detector_processor:
    detector_processor = detector_processor.to(DEVICE)

test_losses_0, _, test_accuracy_0 = onn_validate_mse(
    untrained_net,  # optical network composed in 3.
    test_wf_loader,  # dataloader of training set
    detector_processor,  # detector processor
    loss_func_clf,
    device=DEVICE,
    show_process=True,
)  # evaluate the model

print(
    'Results before training on TEST set:\n' +
    f'\t{loss_func_name} : {np.mean(test_losses_0):.6f}\n' +
    f'\tAccuracy : {(test_accuracy_0*100):>0.1f} %'
)

validation: 100%|██████████████████████████████████████████| 157/157 [00:38<00:00,  4.10it/s]

Results before training on TEST set:
        MSE : 0.006371
        Accuracy : 9.9 %

4.2.2. Training

n_epochs = VARIABLES['number_of_epochs']
print_each = 2  # print each n'th epoch info

scheduler = None  # sheduler for a lr tuning during training

# Recreate a system to restart training!
SIM_PARAMS = SIM_PARAMS.to(DEVICE)
net_to_train = get_net().to(DEVICE)

# Linc optimizer to a recreated net!
optimizer_clf = get_adam_optimizer(net_to_train)

train_epochs_losses = []
val_epochs_losses = []  # to store losses of each epoch

train_epochs_acc = []
val_epochs_acc = []  # to store accuracies

torch.manual_seed(98)  # for reproducability?

for epoch in range(n_epochs):
    if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1):
        print(f'Epoch #{epoch + 1}: ', end='')
        show_progress = True
    else:
        show_progress = False

    # TRAIN
    start_train_time = time.time()  # start time of the epoch (train)
    train_losses, _, train_accuracy = onn_train_mse(
        net_to_train,  # optical network composed in 3.
        train_wf_loader,  # dataloader of training set
        detector_processor,  # detector processor
        loss_func_clf,
        optimizer_clf,
        device=DEVICE,
        show_process=show_progress,
    )  # train the model
    mean_train_loss = np.mean(train_losses)

    if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1):  # train info
        print('Training results')
        print(f'\t{loss_func_name} : {mean_train_loss:.6f}')
        if CALCULATE_ACCURACIES:
            print(f'\tAccuracy : {(train_accuracy*100):>0.1f} %')
        print(f'\t------------   {time.time() - start_train_time:.2f} s')

    # VALIDATION
    start_val_time = time.time()  # start time of the epoch (validation)
    val_losses, _, val_accuracy = onn_validate_mse(
        net_to_train,  # optical network composed in 3.
        val_wf_loader,  # dataloader of validation set
        detector_processor,  # detector processor
        loss_func_clf,
        device=DEVICE,
        show_process=show_progress,
    )  # evaluate the model
    mean_val_loss = np.mean(val_losses)

    if (epoch == 0) or ((epoch + 1) % print_each == 0) or (epoch == n_epochs - 1):  # validation info
        print('Validation results')
        print(f'\t{loss_func_name} : {mean_val_loss:.6f}')
        if CALCULATE_ACCURACIES:
            print(f'\tAccuracy : {(val_accuracy*100):>0.1f} %')
        print(f'\t------------   {time.time() - start_val_time:.2f} s')

    if scheduler:
        scheduler.step(mean_val_loss)

    # save losses
    train_epochs_losses.append(mean_train_loss)
    val_epochs_losses.append(mean_val_loss)
    # seve accuracies
    train_epochs_acc.append(train_accuracy)
    val_epochs_acc.append(val_accuracy)

Epoch #1:

train: 100%|███████████████████████████████████████████████| 860/860 [08:08<00:00,  1.76it/s]

Training results
        MSE : 0.005861
        Accuracy : 51.9 %
        ------------   488.81 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:28<00:00,  2.75it/s]

Validation results
        MSE : 0.005754
        Accuracy : 64.0 %
        ------------   28.74 s
Epoch #2:

train: 100%|███████████████████████████████████████████████| 860/860 [08:58<00:00,  1.60it/s]

Training results
        MSE : 0.005718
        Accuracy : 64.7 %
        ------------   538.35 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:30<00:00,  2.63it/s]

Validation results
        MSE : 0.005709
        Accuracy : 63.8 %
        ------------   30.09 s
Epoch #4:

train: 100%|███████████████████████████████████████████████| 860/860 [10:12<00:00,  1.41it/s]

Training results
        MSE : 0.005675
        Accuracy : 67.2 %
        ------------   612.07 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:30<00:00,  2.61it/s]

Validation results
        MSE : 0.005678
        Accuracy : 67.5 %
        ------------   30.33 s
Epoch #6:

train: 100%|███████████████████████████████████████████████| 860/860 [09:11<00:00,  1.56it/s]

Training results
        MSE : 0.005661
        Accuracy : 67.9 %
        ------------   551.55 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:30<00:00,  2.57it/s]

Validation results
        MSE : 0.005667
        Accuracy : 68.6 %
        ------------   30.70 s
Epoch #8:

train: 100%|███████████████████████████████████████████████| 860/860 [10:45<00:00,  1.33it/s]

Training results
        MSE : 0.005653
        Accuracy : 68.3 %
        ------------   645.20 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:32<00:00,  2.41it/s]

Validation results
        MSE : 0.005660
        Accuracy : 67.1 %
        ------------   32.82 s
Epoch #10:

train: 100%|███████████████████████████████████████████████| 860/860 [11:06<00:00,  1.29it/s]

Training results
        MSE : 0.005648
        Accuracy : 68.6 %
        ------------   666.04 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:31<00:00,  2.53it/s]

Validation results
        MSE : 0.005655
        Accuracy : 68.3 %
        ------------   31.26 s
Epoch #12:

train: 100%|███████████████████████████████████████████████| 860/860 [09:17<00:00,  1.54it/s]

Training results
        MSE : 0.005645
        Accuracy : 68.8 %
        ------------   557.04 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:30<00:00,  2.61it/s]

Validation results
        MSE : 0.005652
        Accuracy : 68.8 %
        ------------   30.32 s
Epoch #14:

train: 100%|███████████████████████████████████████████████| 860/860 [09:12<00:00,  1.56it/s]

Training results
        MSE : 0.005643
        Accuracy : 68.9 %
        ------------   552.11 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:30<00:00,  2.61it/s]

Validation results
        MSE : 0.005651
        Accuracy : 68.0 %
        ------------   30.30 s
Epoch #16:

train: 100%|███████████████████████████████████████████████| 860/860 [09:34<00:00,  1.50it/s]

Training results
        MSE : 0.005641
        Accuracy : 68.9 %
        ------------   574.58 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:31<00:00,  2.53it/s]

Validation results
        MSE : 0.005650
        Accuracy : 68.5 %
        ------------   31.20 s
Epoch #18:

train: 100%|███████████████████████████████████████████████| 860/860 [09:37<00:00,  1.49it/s]

Training results
        MSE : 0.005640
        Accuracy : 68.9 %
        ------------   577.47 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:31<00:00,  2.50it/s]

Validation results
        MSE : 0.005649
        Accuracy : 68.9 %
        ------------   31.63 s
Epoch #20:

train: 100%|███████████████████████████████████████████████| 860/860 [10:10<00:00,  1.41it/s]

Training results
        MSE : 0.005639
        Accuracy : 69.1 %
        ------------   610.99 s

validation: 100%|████████████████████████████████████████████| 79/79 [00:31<00:00,  2.54it/s]

Validation results
        MSE : 0.005648
        Accuracy : 68.6 %
        ------------   31.16 s

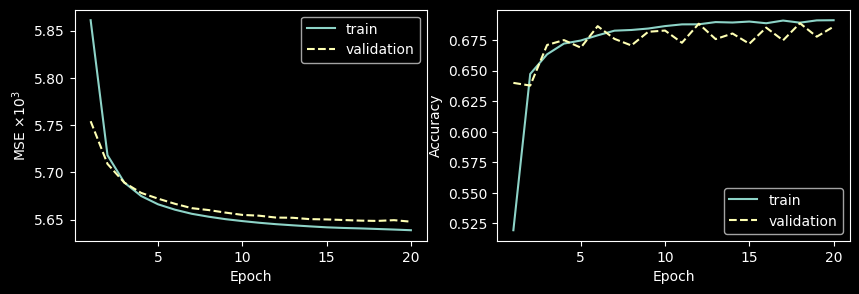

# learning curve
fig, axs = plt.subplots(1, 2, figsize=(10, 3))

axs[0].plot(range(1, n_epochs + 1), np.array(train_epochs_losses) * 1e3, label='train')
axs[0].plot(range(1, n_epochs + 1), np.array(val_epochs_losses) * 1e3, linestyle='dashed', label='validation')

axs[1].plot(range(1, n_epochs + 1), train_epochs_acc, label='train')
axs[1].plot(range(1, n_epochs + 1), val_epochs_acc, linestyle='dashed', label='validation')

axs[0].set_ylabel(loss_func_name + r' $\times 10^3$')
axs[0].set_xlabel('Epoch')
axs[0].legend()

axs[1].set_ylabel('Accuracy')
axs[1].set_xlabel('Epoch')
axs[1].legend()

plt.show()

n_cols = NUM_LAYERS  # number of columns for DiffractiveLayer's masks visualization
n_rows = 1

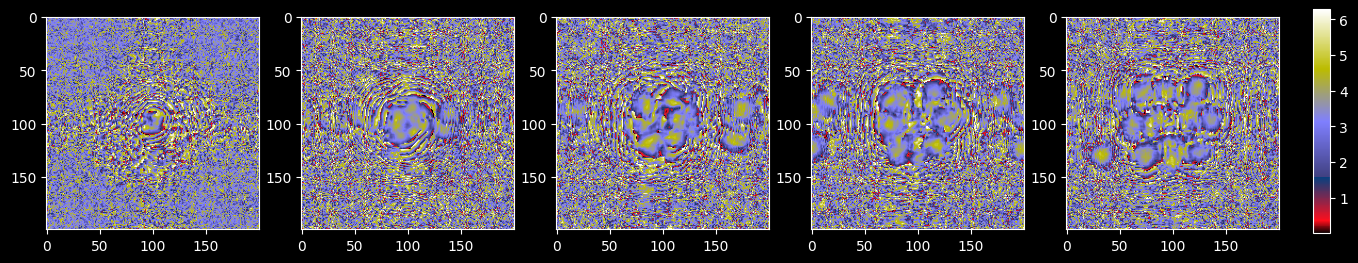

# plot wavefronts phase
fig, axs = plt.subplots(n_rows, n_cols, figsize=(n_cols * 3 + 2, n_rows * 3.2))
ind_diff_layer = 0

cmap = 'gist_stern'  # 'gist_stern' 'rainbow'

net_to_plot = net_to_train.net

for ind_layer, layer in enumerate(net_to_plot):
    if isinstance(layer, elements.DiffractiveLayer) or isinstance(layer, elements.SpatialLightModulator):
        # plot masks for Diffractive layers
        if n_rows > 1:
            ax_this = axs[ind_diff_layer // n_cols][ind_diff_layer % n_cols]
        else:
            ax_this = axs[ind_diff_layer % n_cols]

        # ax_this.set_title(titles[ind_module])

        trained_mask = layer.mask.detach()

        phase_mask_this = ax_this.imshow(
            trained_mask, cmap=cmap,
            # vmin=0, vmax=MAX_PHASE
        )
        ind_diff_layer += 1

        if APERTURES:  # select only a part within apertures!
            x_frame = (x_layer_nodes - DETECTOR_SIZE[1]) / 2
            y_frame = (y_layer_nodes - DETECTOR_SIZE[0]) / 2
            ax_this.axis([x_frame, x_layer_nodes - x_frame, y_layer_nodes - y_frame, y_frame])

fig.subplots_adjust(right=0.85)
cbar_ax = fig.add_axes([0.87, 0.15, 0.01, 0.7])
plt.colorbar(phase_mask_this, cax=cbar_ax)

plt.show()

# array with all losses
all_lasses_header = ','.join([
    f'{loss_func_name.split()[0]}_train', f'{loss_func_name.split()[0]}_val',
    'accuracy_train', 'accuracy_val'
])
all_losses_array = np.array(
    [train_epochs_losses, val_epochs_losses, train_epochs_acc, val_epochs_acc]
).T

# filepath to save the model
model_filepath = f'{RESULTS_FOLDER}/conv_net.pth'
# filepath to save losses
losses_filepath = f'{RESULTS_FOLDER}/training_curves.csv'

# saving model
torch.save(net_to_train.state_dict(), model_filepath)

# saving losses
np.savetxt(
    losses_filepath, all_losses_array,
    delimiter=',', header=all_lasses_header, comments=""
)

4.4. Examples of encoding/decoding

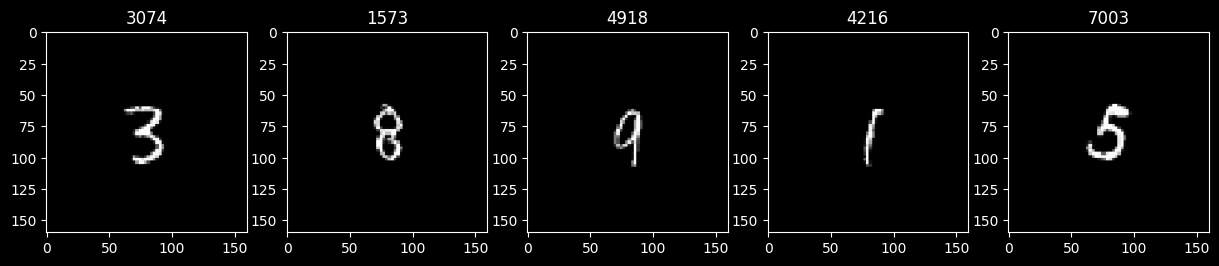

4.4.1. Select a sample to encode/decode

n_test_examples = 5

random.seed(78)
test_examples_ids = random.sample(range(len(mnist_wf_test_ds)), n_test_examples)

fig, axs = plt.subplots(1, n_test_examples, figsize=(n_test_examples * 3, 3))
cmap = 'grey'

for ax, ind_test in zip(axs, test_examples_ids):
    test_wavefront, test_target = mnist_wf_test_ds[ind_test]

    ax.set_title(f'{ind_test}')
    ax.imshow(test_wavefront.intensity, cmap=cmap)

    # ax.set_xticks([])
    # ax.set_yticks([])

plt.show()

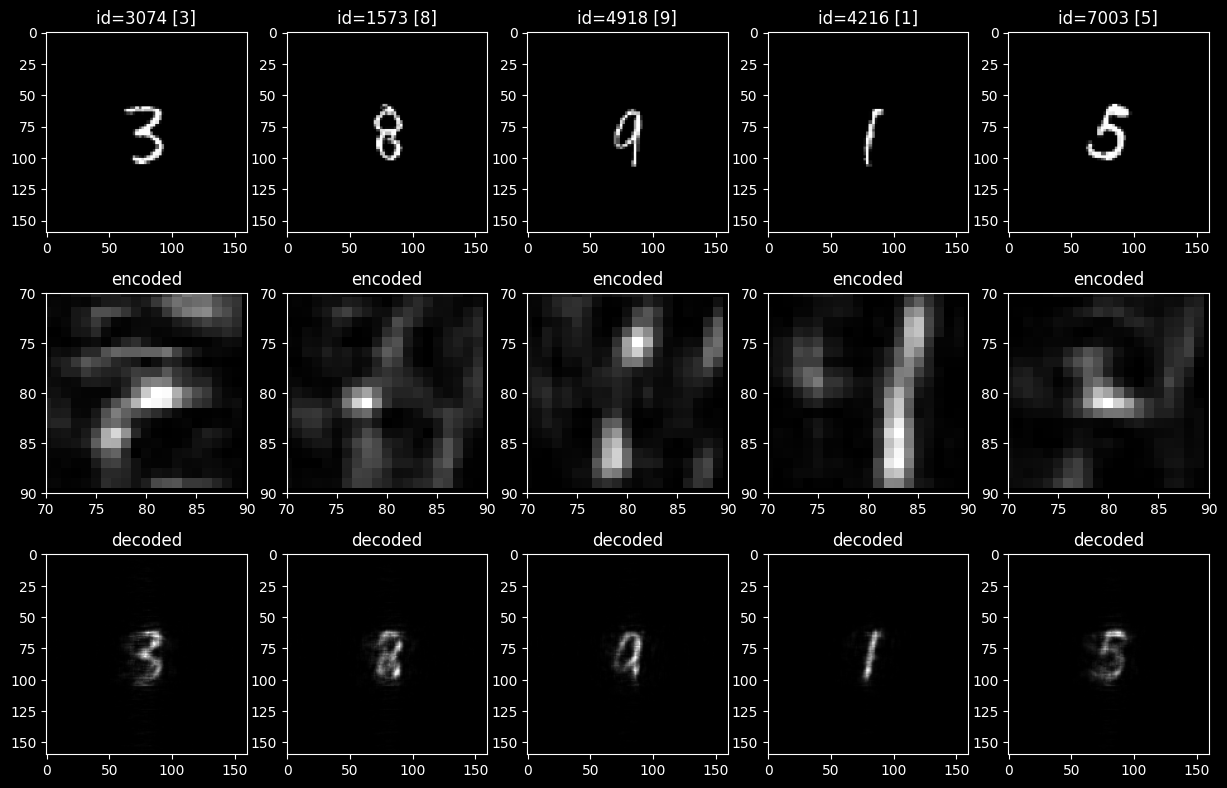

4.4.2. Encode/decode an example

def encode_and_decode(autoencoder, input_wf, use_encoder_aperture=False):
    # if use_encoder_aperture is True - apply strickt square aperture to encoded image
    # aperture is defined as REGION_MASK, that was used in loss!

    with torch.no_grad():
        # ENCODE
        encoded_image = autoencoder.encode(input_wf)
        if not PRESERVE_PHASE:
            encoded_image = encoded_image.abs() + 0j  # reset phases before decoding!
        if use_encoder_aperture:
            encoded_image = encoded_image * REGION_MASK  # apply aperture for encoded image

        # DECODE
        decoded_image = autoencoder.decode(encoded_image)
        if not PRESERVE_PHASE:
            decoded_image = decoded_image.abs() + 0j  # reset phases before decoding!

    return encoded_image, decoded_image

n_lines = 3  # image / encoded / decoded

fig, axs = plt.subplots(n_lines, n_test_examples, figsize=(n_test_examples * 3, n_lines * 3.2))

to_plot = 'amp'  # <--- chose what to plot
cmap = 'grey'  # choose colormaps
use_encoder_aperture = True

max_amp = 1  # upper limits for colorplots
max_phase = 2 * torch.pi

for ind_ex, ind_test in enumerate(test_examples_ids):
    ax_image, ax_encoded, ax_decoded = axs[0][ind_ex], axs[1][ind_ex], axs[2][ind_ex]

    test_wavefront, test_target = mnist_wf_test_ds[ind_test]

    ax_image.set_title(f'id={ind_test} [{test_target}]')
    if to_plot == 'amp':
        ax_image.imshow(
            test_wavefront.intensity, cmap=cmap,
            # vmin=0, vmax=max_amp
        )
    if to_plot == 'phase':
        ax_image.imshow(
            test_wavefront.phase, cmap=cmap,
            # vmin=0, vmax=max_phase
        )

    encoded_this, decoded_this = encode_and_decode(
        autoencoder_to_train, test_wavefront, use_encoder_aperture
    )

    ax_encoded.set_title('encoded')
    if to_plot == 'amp':
        ax_encoded.imshow(
            encoded_this.intensity, cmap=cmap,
            # vmin=0, vmax=max_amp
        )
    if to_plot == 'phase':
        ax_encoded.imshow(
            encoded_this.phase, cmap=cmap,
            # vmin=0, vmax=max_phase
        )
    if use_encoder_aperture:  # select only a part within apertures!
        x_frame = (x_layer_nodes - REGION_MASK_SIZE[1]) / 2
        y_frame = (y_layer_nodes - REGION_MASK_SIZE[0]) / 2
        ax_encoded.set_xlim([x_frame, x_layer_nodes - x_frame])
        ax_encoded.set_ylim([y_layer_nodes - y_frame, y_frame])

    ax_decoded.set_title('decoded')
    if to_plot == 'amp':
        ax_decoded.imshow(
            decoded_this.intensity, cmap=cmap,
            # vmin=0, vmax=max_amp
        )
    if to_plot == 'phase':
        ax_decoded.imshow(
            decoded_this.phase, cmap=cmap,
            # vmin=0, vmax=max_phase
        )

plt.show()
