Use of a nonlinear element

The nonlinear element allows to control the intensity of the incident wavefront while preserving the phase distribution. For the aim to define the nonlinear element, it’s necessary to pass the intensity response_function. For example, we will use the sigmoid function as a response function and the gaussian beam as an incident wavefront:

def response_sigmoid(x):
    return 10 / (1 + torch.exp(-x)) - 5

Creating numerical mesh with using SimulationParameters class

wavelength = 1064 * ureg.nm # wavelength, mm
lx = 15 * ureg.mm # screen size along x-axis, mm
ly = 8 * ureg.mm # screen size along y-axis, mm

Nx = 1200 # number of nodes along x-axis
Ny = 1100 # number of nodes along y-axis

x_length = torch.linspace(-lx / 2, lx / 2, Nx)
y_length = torch.linspace(-ly / 2, ly / 2, Ny)

# define simulation parameters
params = SimulationParameters(
    axes={
            'W': x_length,
            'H': y_length,
            'wavelength': wavelength
        }
)
xv, yv = params.meshgrid(x_axis='W', y_axis='H')

Creating a Gaussian beam using svetlanna.wavefront.gaussian_beam

Let’s create a Gaussian beam that will fall on the nonlinear element:

incident_wavefront = w.Wavefront.gaussian_beam(
    simulation_parameters=params,
    waist_radius=2. * ureg.mm,
    distance=10 * ureg.cm
)

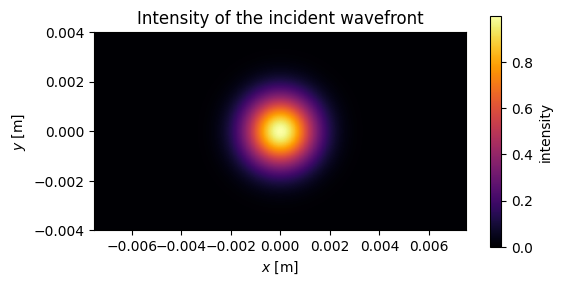

intensity_input = incident_wavefront.intensity

fig, ax = plt.subplots(figsize=(6, 3))
im1 = ax.pcolormesh(xv, yv, intensity_input, cmap='inferno')
ax.set_aspect('equal')
ax.set_title('Intensity of the incident wavefront')
ax.set_xlabel('$x$ [m]')
ax.set_ylabel('$y$ [m]')
fig.colorbar(im1, label='intensity')

<matplotlib.colorbar.Colorbar at 0x1d901aa16d0>

Creating nonlinear element using svetlanna.elements.NonlinearElement

In this section we will create a nonlinear element with determined intensity response_function:

nl_element = elements.NonlinearElement(
    simulation_parameters=params,
    response_function=response_sigmoid
)

transmitted_wavefront = nl_element.forward(incident_wavefront=incident_wavefront)
intensity_output = transmitted_wavefront.intensity

fig, ax = plt.subplots(figsize=(6, 3))
im1 = ax.pcolormesh(xv, yv, intensity_output, cmap='inferno')
ax.set_aspect('equal')
ax.set_title('Intensity of the transmitted wavefront')
ax.set_xlabel('$x$ [m]')
ax.set_ylabel('$y$ [m]')
fig.colorbar(im1, label='intensity')

<matplotlib.colorbar.Colorbar at 0x1d901ac6510>

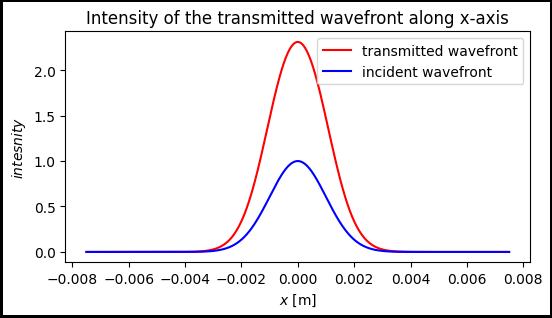

fig, ax = plt.subplots(figsize=(6, 3), edgecolor='black', linewidth=3,
                       frameon=True)

ax.set_title("Intensity of the transmitted wavefront along x-axis")
ax.plot(xv[int(Ny/2)], intensity_output[int(Ny/2)], color='red', label="transmitted wavefront")
ax.plot(xv[int(Ny/2)], intensity_input[int(Ny/2)], color='blue', label="incident wavefront")
ax.legend()
ax.set_xlabel('$x$ [m]')
ax.set_ylabel('$intesnity$')

Text(0, 0.5, '$intesnity$')

Training the parameters of the response function

If it’s necessary to train parameters of the response function, you can pass them into nonlinear element __init__ method using Dict and Parameter object. Parameter of other types can not be trained.

def arbitrary_function(x, parameter1, parameter2, parameter3):
    return parameter1 / (1 + torch.exp(-x * parameter2)) + parameter3 - 150

nl_to_train = elements.NonlinearElement(
    simulation_parameters=params,
    response_function=arbitrary_function,
    response_parameters={
        "parameter1": Parameter(100.),
        "parameter2": Parameter(40.),
        "parameter3": 100.
    }
)

output_field_to_train = nl_to_train.forward(incident_wavefront=incident_wavefront)
intensity_output_to_train = output_field_to_train.intensity

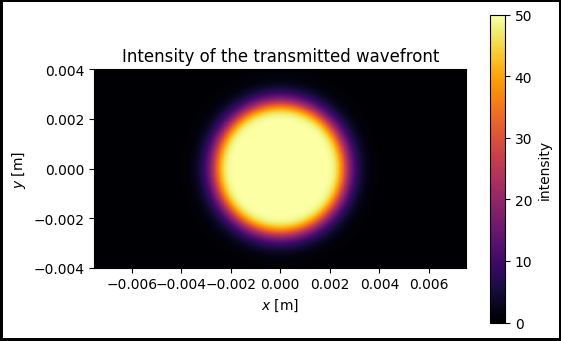

fig, ax = plt.subplots(figsize=(6, 4), edgecolor='black', linewidth=3,
                       frameon=True)
im1 = ax.pcolormesh(xv, yv, intensity_output_to_train.detach(), cmap='inferno')
ax.set_aspect('equal')
ax.set_title('Intensity of the transmitted wavefront')
ax.set_xlabel('$x$ [m]')
ax.set_ylabel('$y$ [m]')
fig.colorbar(im1, label='intensity')

<matplotlib.colorbar.Colorbar at 0x1d902cd3990>

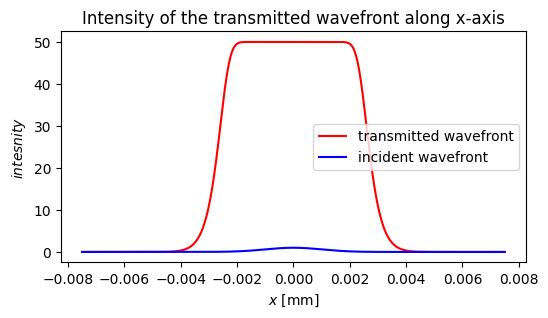

fig, ax = plt.subplots(figsize=(6, 3))

ax.set_title("Intensity of the transmitted wavefront along x-axis")
ax.plot(xv[int(Ny/2)], intensity_output_to_train[int(Ny/2)].detach(), color='red', label="transmitted wavefront")
ax.plot(xv[int(Ny/2)], intensity_input[int(Ny/2)], color='blue', label="incident wavefront")
ax.legend()
ax.set_xlabel('$x$ [mm]')
ax.set_ylabel('$intesnity$')

Text(0, 0.5, '$intesnity$')
